LM2596T-ADJ - Texas Instruments

The LM2596T-ADJ from Texas Instruments is a versatile and highly efficient Simple Switcher® step-down voltage regulator that offers a compact solution for a wide range of applications. This adjustable version of the LM2596 series provides an output voltage that can be set by the user from 1.23V to 37V, which allows for a high degree of flexibility in designing power supply circuits.

With a guaranteed 3A output current, the LM2596T-ADJ can handle a significant load while maintaining a stable output voltage. The regulator operates at a switching frequency of 150 kHz, which provides an optimal balance between efficiency, external component size, and cost. The use of a higher switching frequency allows for the use of smaller inductors and capacitors, which reduces the overall footprint of the power supply on the circuit board.

One of the standout features of the LM2596T-ADJ is its integrated 4% tolerance on output voltage within specified input voltages and output load conditions, as well as its ±0.1%/°C temperature stability. This precision makes it suitable for critical applications where voltage accuracy is paramount.

The device includes a host of protection features to ensure reliable operation under various conditions. These include thermal shutdown, cycle-by-cycle current limiting, and safe area protection. This makes the LM2596T-ADJ not only a robust choice for designers but also a safe one, minimizing the risk of damage to the regulator or the powered device in the event of an anomaly.

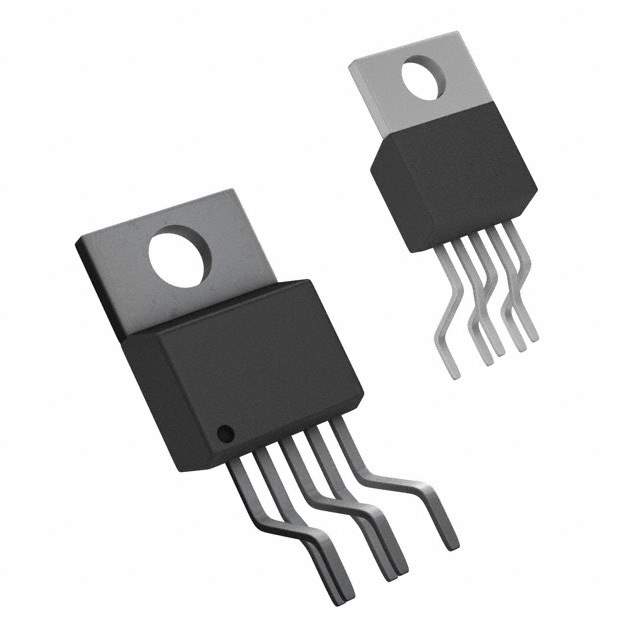

The LM2596T-ADJ comes in a TO-220 package, which is widely used in the industry and is known for its ease of handling and heat dissipation properties. This makes it a practical choice for both prototyping and mass production. Its simple external circuitry requirements and comprehensive datasheet make it an accessible solution for engineers looking to implement a reliable power supply without the need for complex design work.

In summary, the LM2596T-ADJ is a reliable and flexible solution for a variety of power supply needs, offering high efficiency, adjustable output voltage, and robust protection features in a compact, industry-standard package.
