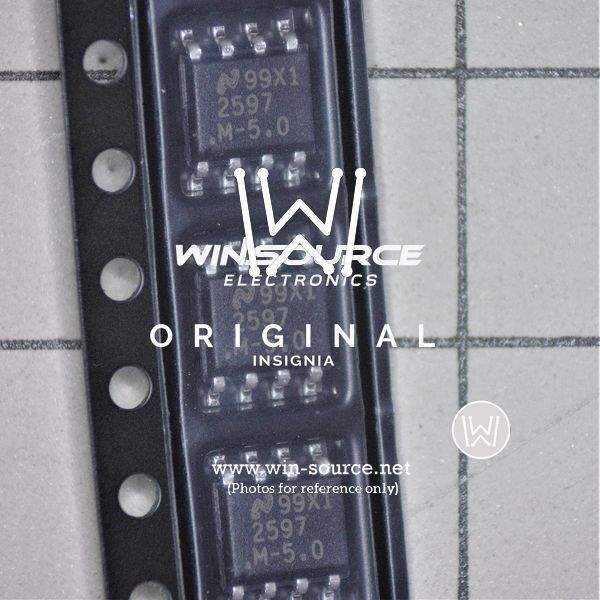

The LM2597MX-5.0, manufactured by Texas Instruments, is a highly efficient, step-down voltage regulator with a fixed 5V output voltage. This component is part of the LM2597 series, which is renowned for its ease of use and robust performance. The LM2597MX-5.0 is designed to convert higher DC voltage to a lower regulated voltage, making it ideal for a wide array of applications, including embedded systems, consumer electronics, and telecommunications equipment.

Key Features

• Output Voltage: Fixed at 5V, providing a stable power supply for 5V logic and microcontroller-based systems.
• Input Voltage Range: Capable of handling an input voltage from 4.5V to 40V, accommodating a wide range of power sources.
• Output Current: Can deliver up to 3A of continuous output current, suitable for high-power applications.
• High Efficiency: Features a switch-mode design that offers up to 77% efficiency, minimizing heat generation and power loss.
• Thermal Shutdown and Current Limit Protection: Ensures safe operation by preventing damage from overheating and overcurrent conditions.
• Adjustable Switching Frequency: Allows for optimization between efficiency and component size with a frequency range of 150kHz to 400kHz.
• Package: Available in a 16-pin SOIC (Small Outline Integrated Circuit) package, which is suitable for surface-mount technology (SMT).

Applications

The LM2597MX-5.0's versatility makes it an excellent choice for a variety of applications, including but not limited to:

• Simple high-efficiency step-down (buck) regulators.
• Efficient pre-regulators for linear regulators.
• On-card switching regulators for elimination of noise and distribution problems associated with single-point regulation.

Overall, the LM2597MX-5.0 from Texas Instruments represents a reliable and efficient solution for designers looking to implement a compact, fixed-voltage power supply in their electronic projects. Its robust feature set ensures performance and longevity in a range of demanding applications.
