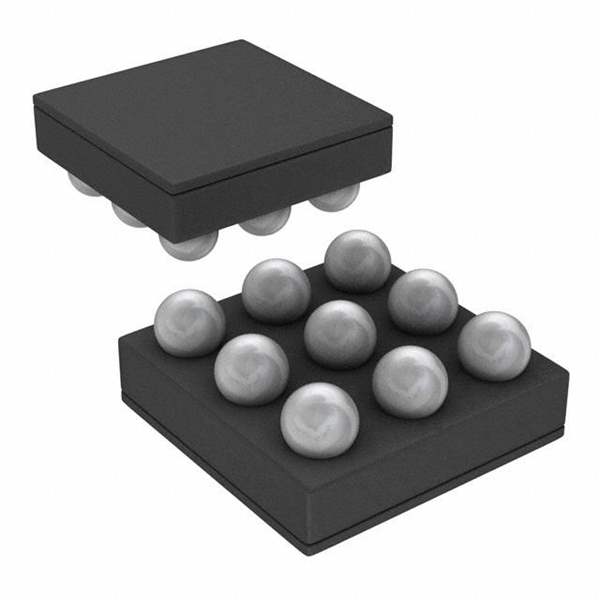

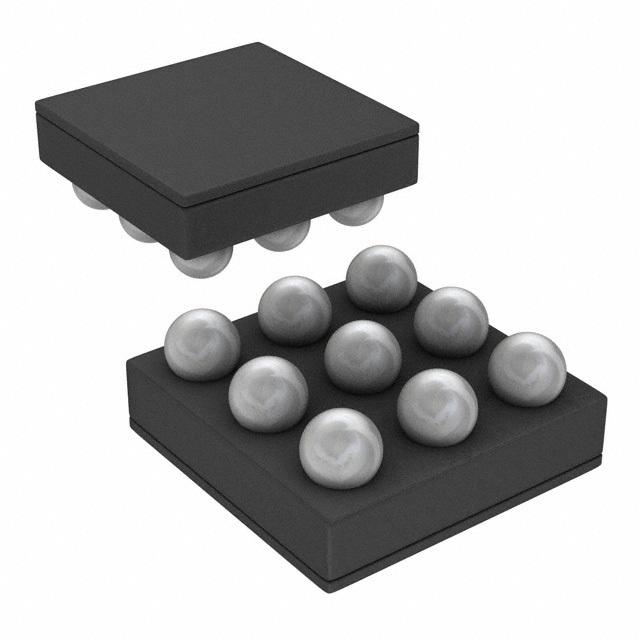

Product Overview: LM3508TLX/NOPB

The LM3508TLX/NOPB is a high-efficiency, switch-mode LED driver designed and manufactured by Texas Instruments (TI). This compact, integrated solution is engineered to provide consistent and reliable power to LEDs, making it an ideal choice for portable and battery-powered applications where energy efficiency is paramount.

With its adjustable output voltage and current, the LM3508TLX/NOPB can drive a string of white LEDs in series, ensuring uniform brightness and enhancing the overall user experience in display backlighting applications. The device is optimized for small form factor applications, such as mobile phones, digital cameras, and other handheld devices.

The driver features an internal switch with a high-side current sense, which allows for the use of small inductors and capacitors, thereby minimizing the solution size and the external component count. This not only saves valuable board space but also simplifies the design process for engineers.

Key specifications of the LM3508TLX/NOPB include:

• Input voltage range from 2.7V to 5.5V, accommodating a wide variety of power sources.
• Adjustable output current up to 30mA, enabling precise control over the brightness of the LEDs.
• High efficiency, thanks to its 1MHz fixed-frequency PWM operation, which also reduces noise and RF interference.
• Thermal shutdown protection, ensuring the device and the system it powers are safeguarded against overheating.
• Over-voltage protection, which prevents damage to the LED array in case of an unexpected surge in voltage.

For ease of integration, the LM3508TLX/NOPB is offered in a tiny 8-pin LLP package, making it suitable for space-constrained applications. The device's simple, external components allow for a flexible and compact LED driving solution.

TI's commitment to quality ensures that the LM3508TLX/NOPB meets the rigorous standards required for industrial and consumer electronics. With its advanced features and robust performance, this LED driver stands out as a superior choice for designers looking to enhance their lighting solutions.
