Product Overview: LM3537TME/NOPB

The LM3537TME/NOPB is a high-performance, highly flexible LED driver from Texas Instruments, designed to meet the needs of complex lighting solutions. This advanced driver is particularly suitable for powering the backlighting of LCD displays in portable devices such as smartphones, tablets, and digital cameras, where energy efficiency and compact size are critical.

Key Features

• Multiple LED Support: The LM3537TME/NOPB can drive up to 11 LEDs in series, providing consistent brightness and color uniformity across the display.
• Adaptive Voltage Scaling (AVS): This technology dynamically adjusts the output voltage to the lowest sufficient level, reducing power consumption and prolonging battery life in portable devices.
• Programmable Current Sinks: The device includes three independently programmable current sinks, allowing for fine-grained control over brightness levels and enabling support for different LED configurations.
• Ambient Light Sensing (ALS): Integration with ambient light sensors enables automatic brightness adjustment in response to changing environmental light conditions, enhancing user experience and further conserving power.
• I2C Compatible Interface: The driver features an I2C interface for communication, which allows for easy programming and integration with a microcontroller or processor.
• Thermal Protection: The LM3537TME/NOPB includes built-in thermal shutdown protection, ensuring the device and LEDs operate within safe temperature ranges.

Applications

The versatility of the LM3537TME/NOPB makes it an ideal choice for a wide range of applications. Its power efficiency and compact footprint make it especially well-suited for portable devices, but it can also be used in automotive dashboard displays, industrial control panels, and anywhere high-quality LED backlighting is required.

Quality and Reliability

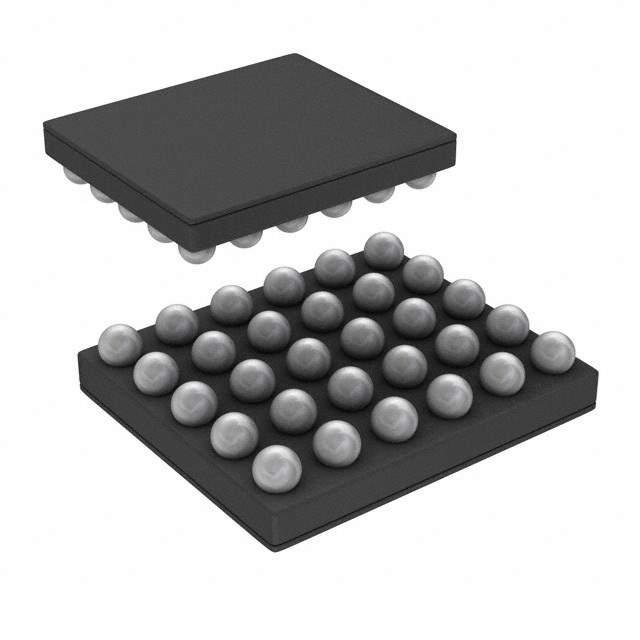

As with all Texas Instruments products, the LM3537TME/NOPB is manufactured to high standards of quality and reliability. The device is available in a small, 25-bump DSBGA package, which is RoHS compliant and lead-free, minimizing environmental impact and meeting regulatory requirements for global markets.

For designers looking for a reliable, efficient, and flexible LED driver solution, the LM3537TME/NOPB from Texas Instruments stands out as a top choice.
