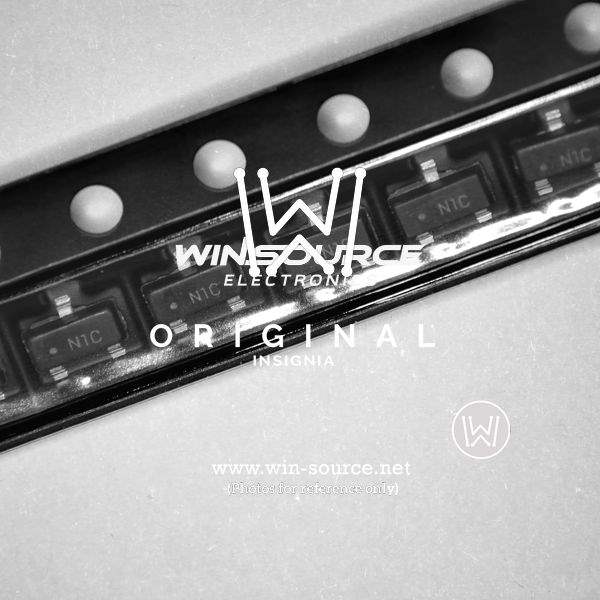

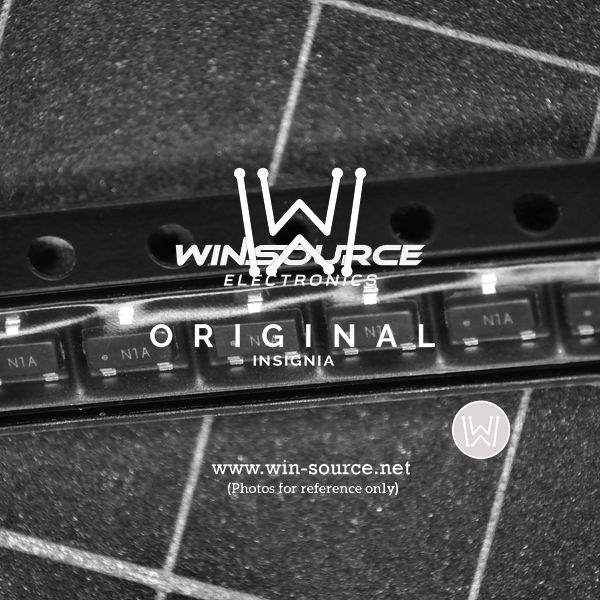

LM431CIM3X/NOPB Real Image LM431CIM3X/NOPB Real Image1 LM431CIM3X/NOPB Real Image2
Same model may have multiple batches, images only for reference.
LM431CIM3X/NOPB Real Image LM431CIM3X/NOPB Real Image1 LM431CIM3X/NOPB Real Image2
LM431CIM3X/NOPB Real Image LM431CIM3X/NOPB Real Image1 LM431CIM3X/NOPB Real Image2
Same model may have multiple batches, images only for reference.

LM431CIM3X/NOPB

Part No LM431CIM3X/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Reference
Description IC VREF SHUNT ADJ SOT23-3
Datasheet
LM431CIM3X/NOPB Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Reference Type Shunt
Output Type Adjustable
Nominal Output Voltage (Min/Fixed) 2.5V
Maximum Output Voltage 37V
Output Current 100mA
Tolerance -0.6%, +0.4%
Temperature Coefficient 50ppm/°C Typical
Current - Cathode 1mA
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package SOT-23-3
Win Source Part Number 002587-LM431CIM3X/NOPB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM431CIM3X/NOPB CAD Model

Description

The LM431CIM3X/NOPB is a highly versatile and high-performance product from the globally recognized company, Texas Instruments.

  • Design: Three-terminal adjustable shunt regulator
  • Reference Voltage Tolerance: 1% @ 25 degrees Celsius
  • Output Voltage: Can be set to any value between Vref (approximately 2.5V) and 36V, with two external resistors
  • Output Noise Voltage: Low
  • Operating Temperature Range: -40°C to 125°C
  • Package: Small SOT-23
  • RoHS Compliant: Yes
  • Lead-Free: Yes
