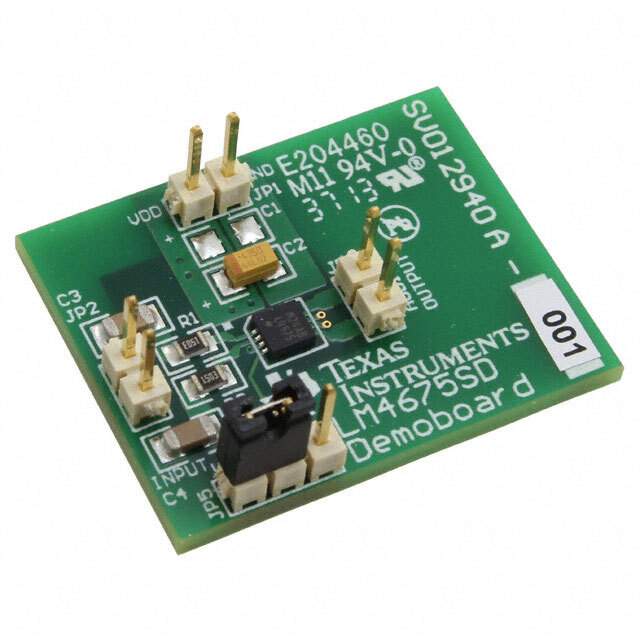

The LM4675SDBD is a high-performance audio power amplifier from Texas Instruments designed to deliver premium sound quality in a compact and efficient package. This advanced amplifier is capable of driving a 4Ω load with up to 2.5W of output power, making it an ideal choice for portable applications where space and power consumption are critical considerations.

Key Features

• Output Power: Delivers up to 2.5W into a 4Ω load with less than 1% THD+N, ensuring loud and clear audio reproduction.
• Efficiency: Features a high-efficiency Class-D operation with over 90% power efficiency, reducing heat dissipation and extending battery life in portable devices.
• Supply Voltage: Operates on a supply voltage range from 2.4V to 5.5V, accommodating a variety of power sources and enabling use in a broad range of applications.
• Low Quiescent Current: Exhibits a low quiescent current that minimizes standby power consumption, crucial for battery-powered devices.
• Advanced Pop & Click Suppression: Incorporates sophisticated pop and click noise suppression circuitry to eliminate noises during turn-on and turn-off transitions.
• Thermal Protection: Includes built-in thermal shutdown protection that prevents damage to the amplifier and the load in case of overheating.

Applications

The LM4675SDBD is versatile and can be used in a range of applications including but not limited to:

• Mobile Phones
• Portable Media Players
• Handheld Gaming Devices
• Notebook Computers
• Portable Speakers

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability, and the LM4675SDBD is no exception. It is built to meet the highest industry standards, ensuring consistent performance and durability for the end user.

Support and Documentation

Comprehensive technical documentation, including datasheets, application notes, and design resources, are available to assist developers in integrating the LM4675SDBD into their designs. Texas Instruments also provides robust customer support to address any technical inquiries or challenges.
