Introducing the LM5005MHX Step-Down Switching Regulator from Texas Instruments

The LM5005MHX is a high-performance step-down switching regulator designed by Texas Instruments to meet the needs of modern electronic applications. This regulator is capable of driving a 3.5A load with excellent line and load regulation. It is a versatile component suitable for a wide range of applications, including industrial, automotive, and telecommunications systems.

The LM5005MHX integrates all of the essential functions necessary for a complete step-down power supply. It operates over a wide input voltage range from 6V to 75V, making it ideal for handling varying input sources and high voltage requirements. This feature ensures reliable operation even under fluctuating voltage conditions, which is particularly useful in automotive power systems where battery voltage can vary significantly.

One of the key features of the LM5005MHX is its adjustable output voltage capability, which allows users to set the output voltage from 1.225V to 50V to suit their specific circuit requirements. This flexibility is achieved through an external resistor divider, providing precision and adaptability for a variety of design needs.

The efficiency of the LM5005MHX is enhanced by its integrated 75V N-Channel MOSFET, which has a low on-resistance. This characteristic minimizes conduction losses and improves overall efficiency, a critical factor for energy-sensitive designs. Additionally, the device offers a fixed switching frequency, adjustable from 100kHz to 500kHz, enabling designers to optimize the regulator's performance for their application.

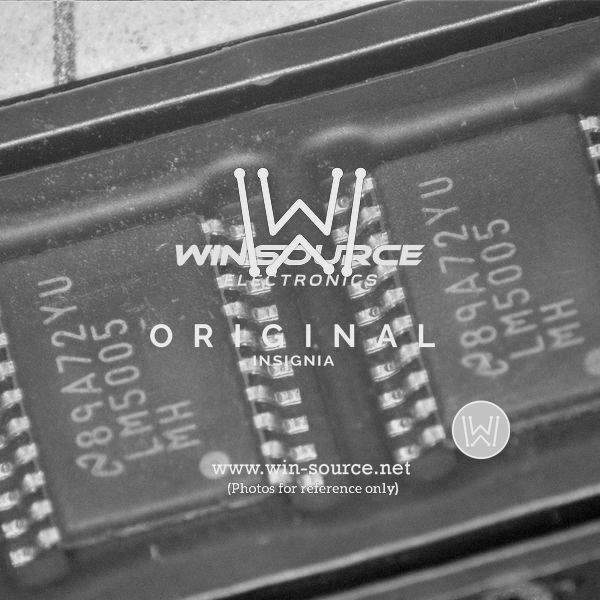

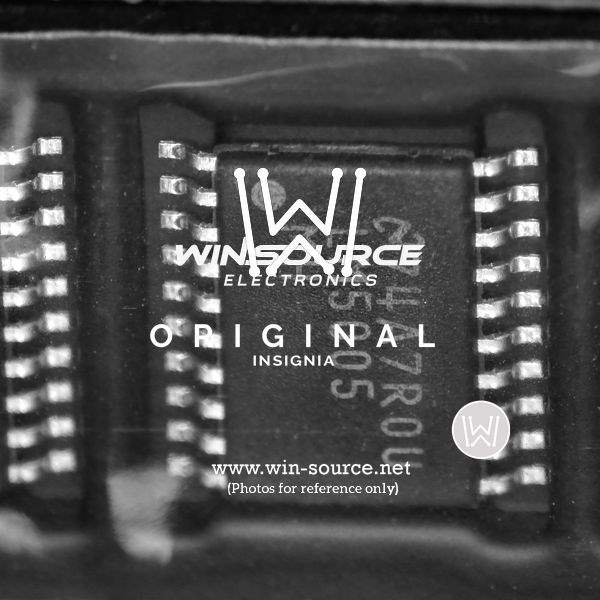

Protection features of the LM5005MHX include thermal shutdown, cycle-by-cycle current limiting, and undervoltage lockout. These features provide essential safeguards for the regulator and the system it powers, ensuring long-term reliability and stability. The device is available in a thermally enhanced HTSSOP-20 PowerPAD package, which aids in heat dissipation and allows for a more compact design footprint.

Overall, the LM5005MHX from Texas Instruments is a robust and reliable choice for engineers looking to implement an efficient, high-voltage step-down regulator in their power management designs.
