The LM61480RPHR is a high-performance, synchronous step-down DC/DC converter from Texas Instruments, designed to meet the needs of modern, power-efficient applications. This advanced power solution is ideal for a wide range of products, including consumer electronics, automotive systems, and industrial equipment.

Key Features

• Wide Input Voltage Range: Capable of operating with an input voltage from 3.8V to 36V, the LM61480RPHR is versatile enough to handle a variety of power sources.
• High Output Current: It supports an output current of up to 4A, making it suitable for applications that require substantial power delivery.
• High Efficiency: The device boasts an efficiency rating of up to 95%, ensuring minimal power loss during conversion and contributing to longer battery life in portable applications.
• Adjustable Switching Frequency: With a switching frequency range from 400kHz to 2.2MHz, designers can optimize the converter for size, efficiency, or output ripple.

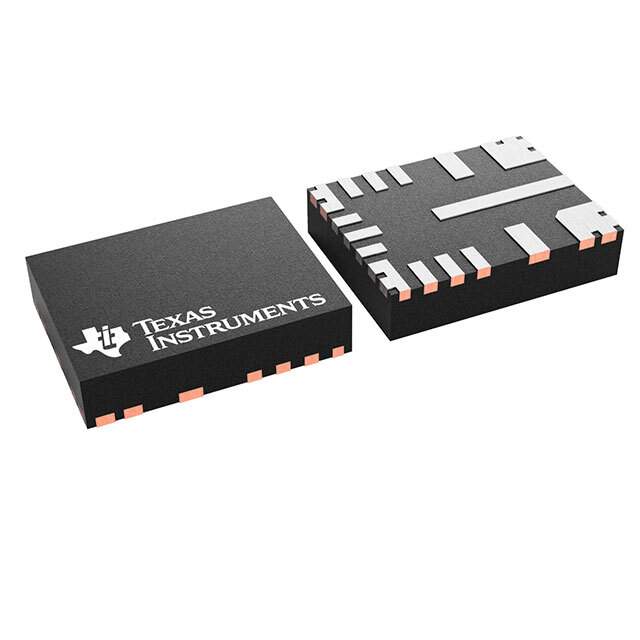

• Thermal Performance: The LM61480RPHR comes in a 3.5mm x 3.5mm VQFN-HR package, which offers excellent thermal performance and a small footprint on the PCB.

Protection Features

• Overcurrent Protection: The device includes cycle-by-cycle current limiting to protect against overcurrent conditions.
• Thermal Shutdown: An integrated thermal shutdown feature protects the device from overheating, ensuring safe operation under various conditions.
• Under-Voltage Lockout (UVLO): The UVLO function ensures that the device operates only when the input voltage is within an acceptable range.

Applications

The LM61480RPHR is designed for applications that demand high efficiency and a wide input voltage range. It is particularly well-suited for the following:

• Automotive infotainment and telematics
• Industrial power supplies
• Point-of-load conversions
• Telecommunications equipment
• Battery-powered devices

With its robust feature set and protection mechanisms, the Texas Instruments LM61480RPHR is an excellent choice for designers looking to create reliable and energy-efficient power solutions.
