The LM75BIMM-5 is a precision integrated-circuit temperature sensor that can be utilized for system temperature monitoring. Manufactured by Texas Instruments, a leader in semiconductor solutions, this sensor provides a digital output that corresponds to the temperature of the device.

Key Features

• Accuracy: The LM75BIMM-5 offers an impressive accuracy of ±2°C over a temperature range of -25°C to +100°C, and ±3°C over a range of -55°C to +125°C.
• Digital Interface: It features an I2C interface, allowing for easy integration into various systems and applications.
• Programmable Resolution: The sensor's resolution is programmable from 9 to 12 bits, permitting users to optimize the trade-off between resolution and conversion time.
• Low Power Consumption: Designed for power-sensitive applications, it operates with a very low standby current, making it ideal for battery-powered devices.
• Shutdown Mode: It includes a shutdown mode that reduces power consumption when the sensor is not in use.

Applications

The LM75BIMM-5 is suitable for a wide range of applications, including:

• Environmental control systems
• System thermal protection
• Personal computers and servers
• Electronic test and measurement equipment
• Battery management systems
• Office electronics

Technical Specifications

With a supply voltage range of 2.7V to 5.5V, the LM75BIMM-5 is versatile and can be powered by various sources. It is available in an 8-pin VSSOP package, which is suitable for space-constrained applications. The operating temperature range of -55°C to +125°C ensures that it can perform reliably in extreme conditions.

Ordering and Packaging

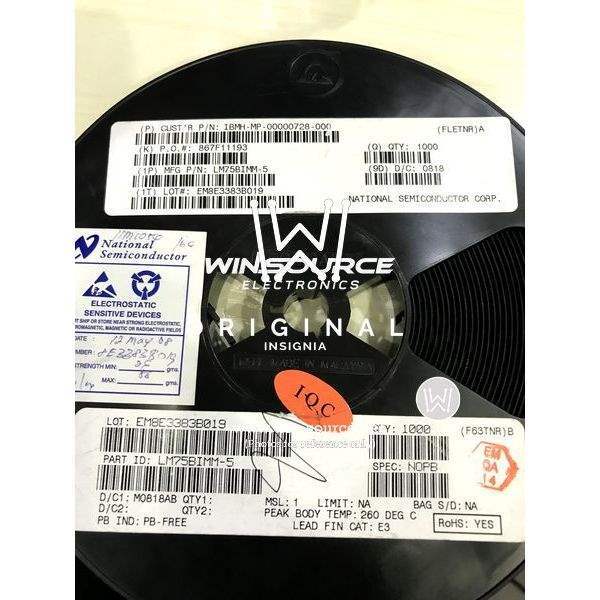

When ordering the LM75BIMM-5, it is important to refer to the complete part number including the package designator to ensure the correct product is received. The device is RoHS compliant and is packaged in a tape and reel format for automated assembly processes.

For detailed information, technical documents, and support, visit the Texas Instruments website.
