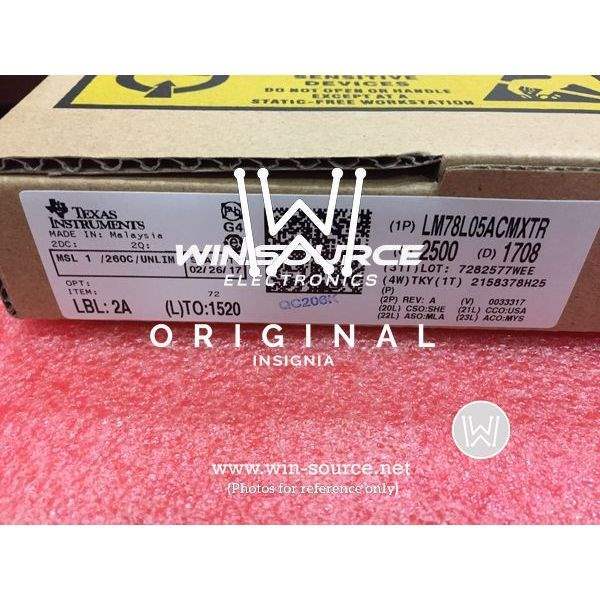

LM78L05ACM/NOPB Texas Instruments LM78L05ACM/NOPB Real Image LM78L05ACM/NOPB label picture 2 LM78L05ACM/NOPB real image LM78L05ACM/NOPB Real Image1 LM78L05ACM/NOPB Real Image2 LM78L05ACM/NOPB Real Image3
Same model may have multiple batches, images only for reference.
LM78L05ACM/NOPB Texas Instruments LM78L05ACM/NOPB Real Image LM78L05ACM/NOPB label picture 2 LM78L05ACM/NOPB real image LM78L05ACM/NOPB Real Image1 LM78L05ACM/NOPB Real Image2 LM78L05ACM/NOPB Real Image3
LM78L05ACM/NOPB Texas Instruments LM78L05ACM/NOPB Real Image LM78L05ACM/NOPB label picture 2 LM78L05ACM/NOPB real image LM78L05ACM/NOPB Real Image1 LM78L05ACM/NOPB Real Image2 LM78L05ACM/NOPB Real Image3
Same model may have multiple batches, images only for reference.

LM78L05ACM/NOPB

Part No LM78L05ACM/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 0.1A 8SOIC
Datasheet
LM78L05ACM/NOPB Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 35V
Nominal Output Voltage (Min/Fixed) 5V
Output Current 100mA
Operating Supply Current 3mA
PSRR 62dB (120Hz)
Control Protection Features Over Temperature, Short Circuit
Temperature Range - Operating 0°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 5V
Mounting SMD (SMT)
Case / Package 8-SOIC
Win Source Part Number 206432-LM78L05ACM/NOPB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM78L05ACM/NOPB CAD Model

Description

The LM78L05ACM/NOPB from Texas Instruments is a reliable and efficient voltage regulator designed to deliver a stable and consistent output voltage.

  • Output Voltage: 5V
  • Output Current: Up to 100mA
  • Accuracy: ±5%
  • Operating Temperature Range: -40°C to 125°C
  • Thermal Overload Protection: Built-in feature
  • Power Consumption: Low
  • Compliance: RoHS compliant
