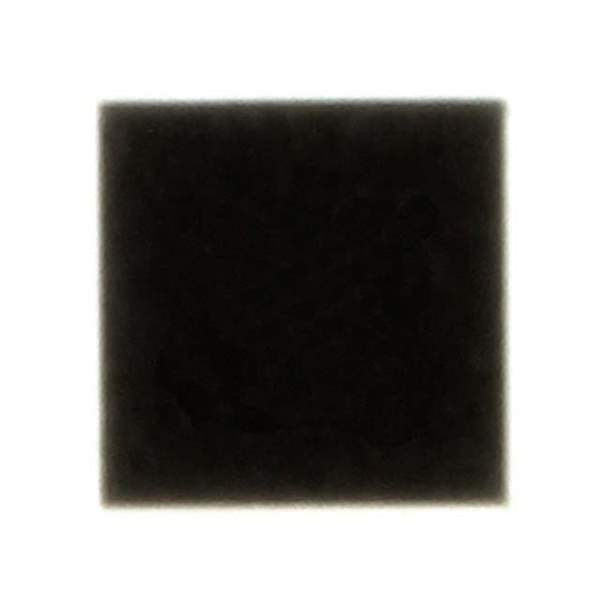

The LM78L05IBPX is a fixed-voltage integrated-circuit voltage regulator designed by Texas Instruments. This regulator offers a compact, reliable solution for applications requiring a regulated 5V power supply. It is part of the LM78Lxx series, which are positive voltage regulators with three terminals and are available in a variety of fixed output voltages, making them versatile for a wide range of applications.

Key Features:

• Output Voltage: The LM78L05IBPX provides a precise 5V output, which is essential for sensitive electronics that require a stable power supply.
• Output Current: It is capable of delivering up to 100mA of output current, sufficient for small-scale projects and electronic circuits.
• Package: The device comes in a small 4-Pin PicoStar package, which is ideal for space-constrained applications.
• Input Voltage Range: This voltage regulator can operate with an input voltage range from 6.7V to 35V, offering flexibility in various power supply scenarios.
• Thermal Overload Protection: It includes built-in thermal overload protection that shuts down the output when the regulator's temperature exceeds safe operating limits, thereby protecting the device from damage.
• Short-Circuit Protection: The LM78L05IBPX also features short-circuit protection, which helps to safeguard the regulator and the connected components in case of a fault.
• Low Quiescent Current: The regulator maintains a low quiescent current, which is beneficial for battery-powered devices as it helps in prolonging battery life.

Applications:

The LM78L05IBPX is widely used in various electronic devices and projects. Some of its common applications include:

• Power supplies for digital systems
• Portable electronics
• Battery-powered equipment
• Consumer electronics
• Embedded systems

In conclusion, the LM78L05IBPX from Texas Instruments is a highly efficient and reliable solution for providing a stable 5V power supply. Its small form factor, combined with essential protection features, makes it an excellent choice for designers looking for a simple yet effective voltage regulation solution.
