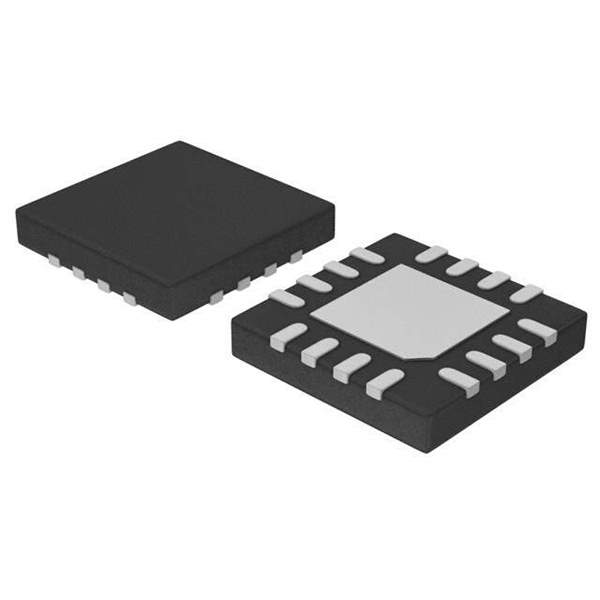

The LMH0302SQX/NOPB is a high-performance, adaptive cable equalizer designed by Texas Instruments to extend the reach of high-speed serial digital video signals. This device is part of TI's extensive line of broadcast video products and is tailored to meet the stringent requirements of the professional video industry.

Key Features

• High Data Rates: Supports serial data rates up to 2.97 Gbps, making it suitable for SDI, HD-SDI, and 3G-SDI video formats.
• Adaptive Equalization: Features adaptive equalization technology, which enables it to compensate for losses incurred over long cable runs, ensuring signal integrity and reducing jitter.
• Power Efficiency: Operates with a single 3.3V supply, offering a power-efficient solution for video signal processing.
• Output Driver: Includes an integrated cable driver capable of driving 75-ohm coaxial cables, providing a complete signal conditioning solution.
• Robust Construction: Housed in a compact, surface-mount package that is lead-free and RoHS compliant, ensuring environmental friendliness and ease of integration into various designs.

Applications

The LMH0302SQX/NOPB is versatile and can be used in a range of applications, including:

• Digital video routers and switches
• Digital video cameras and recorders
• Edit and conversion systems
• Video distribution amplifiers
• Professional video monitors

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the LMH0302SQX/NOPB is no exception. It is designed to meet or exceed the performance requirements of the SMPTE 424M, SMPTE 292M, and SMPTE 259M standards for serial digital video. With its advanced features and proven performance, the LMH0302SQX/NOPB is an ideal choice for professionals seeking to enhance their video systems.
