The LMH0394SQ/NOPB is a high-performance, adaptive cable equalizer designed by Texas Instruments to extend the reach of high-speed serial digital video signals over coaxial cable. This advanced semiconductor device is part of Texas Instrument's extensive line of broadcast video products and is specifically engineered to support the demands of professional video applications.

Key Features

• SDI Support: The LMH0394SQ/NOPB is compatible with SMPTE 259M, 292M, 424M, and 297M standards, making it suitable for a wide range of Serial Digital Interface (SDI) applications, including 3G-SDI, HD-SDI, and SD-SDI.
• Adaptive Equalization: It features adaptive equalization technology, which provides compensation for cable losses up to 150 meters at 2.97 Gbps over Belden 1694A coaxial cable or equivalent, ensuring signal integrity over long cable runs.
• Low Power Consumption: Designed with power efficiency in mind, the LMH0394SQ/NOPB operates with low power consumption, making it an ideal choice for power-sensitive applications.
• Output Driver: The integrated cable driver delivers excellent signal quality with a programmable output swing and pre-emphasis, enhancing signal performance and reducing bit error rates.

Applications

The LMH0394SQ/NOPB is ideal for a variety of professional video applications, including:

• Video production and broadcasting equipment
• Digital video routers and switchers
• Video editing and post-production systems
• Digital signage
• Professional A/V equipment

Package and Quality

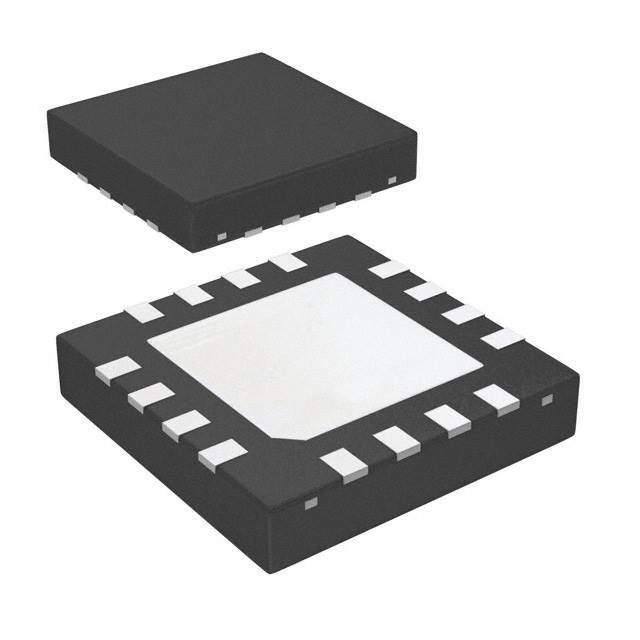

This device is offered in a small 16-pin WQFN package, which allows for a compact design footprint in space-constrained applications. The LMH0394SQ/NOPB is also part of Texas Instruments' "NOPB" (No Lead) series, indicating it is RoHS compliant and environmentally friendly, minimizing the impact on the environment.

With its robust feature set and proven reliability, the LMH0394SQ/NOPB from Texas Instruments represents a superior solution for extending the reach of high-speed video signals with minimal degradation, ensuring high-quality video transmission in professional environments.
