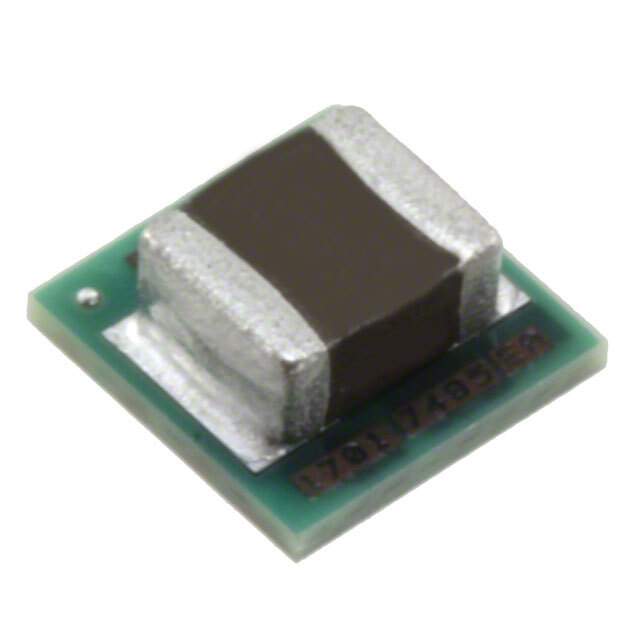

The LMZ20501SILT from Texas Instruments is a highly efficient, easy-to-use nano module that integrates a DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This power solution is capable of driving up to a 1A load with excellent power efficiency, low ripple, and low noise output.

Key Features

• Integrated Power Solution: The module includes the inductor and passives, providing a compact design and simplifying layout complexity.
• Input Voltage Range: It operates from an input voltage of 2.7V to 5.5V, making it suitable for a wide range of applications, including battery-powered devices.
• Output Voltage: The output voltage is adjustable from 0.8V to 3.6V, which allows flexibility across various designs and end-uses.
• High Efficiency: Its high efficiency helps to minimize heat generation and increases system reliability.
• Low Profile: The QFN package has a maximum height of 1.41mm, which is ideal for space-constrained applications.
• Thermal Performance: Enhanced thermal performance ensures reliability even at full-load operation.
• Simple Design: The simplicity of design is catered to with minimal external components required, reducing overall design time and complexity.

Applications

With its versatile input voltage range and adjustable output voltage, the LMZ20501SILT is suitable for a variety of applications, including:

• Point-of-Load Conversions
• Space-Constrained Applications
• Portable and Battery-Powered Equipment
• Networking, Telecom, and Computing Systems
• Industrial and Automotive Electronics

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the LMZ20501SILT is no exception. It is designed to meet the rigorous standards of the industry, ensuring stable performance across various conditions and applications.
