Introducing the LP38691SD-ADJ LDO Voltage Regulator by Texas Instruments

The LP38691SD-ADJ from Texas Instruments is a high-performance, low-dropout regulator designed to maintain precision voltage control in a variety of applications. This device is part of TI's esteemed line of power management integrated circuits, renowned for their reliability and efficiency.

With the capability to deliver up to 1A of continuous output current, the LP38691SD-ADJ is perfect for powering sensitive analog and digital circuitry in mixed-voltage systems. Its adjustable output voltage range from 1.25V to 5.5V allows for versatile application across various industries and products.

The LP38691SD-ADJ boasts an impressive low dropout voltage, which ensures minimal voltage difference between the input and output under all load conditions, thus improving system efficiency. This feature is particularly valuable in battery-powered devices where every volt counts towards extending operational life.

Key Features:

• Adjustable Output Voltage: Provides flexibility with an output voltage range from 1.25V to 5.5V, allowing it to be used in a multitude of different circuit designs.
• High Output Current: The ability to supply up to 1A of output current makes it suitable for a wide array of power applications.
• Low Dropout Voltage: Ensures efficient operation by maintaining a minimal voltage differential between input and output.
• Stable with Low-ESR Capacitors: The LP38691SD-ADJ remains stable with ceramic capacitors, which reduces the size and cost of the capacitors needed.
• Thermal Shutdown and Current Limit Protection: These safety features protect the device and the system under extreme operating conditions.

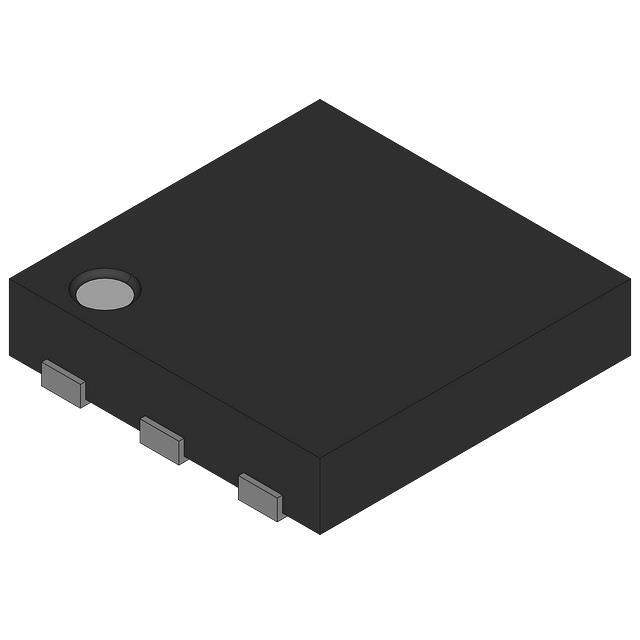

The device comes in a space-saving WSON-6 package, making it ideal for compact and portable applications. Its thermal performance is enhanced by the exposed pad on the package, which can be soldered down to the PCB to improve heat dissipation.

Whether you're designing consumer electronics, telecommunications equipment, or industrial hardware, the LP38691SD-ADJ offers the performance and reliability expected from a Texas Instruments product. Its versatility, combined with a robust feature set, ensures that your power supply design can meet the strictest requirements with ease.
