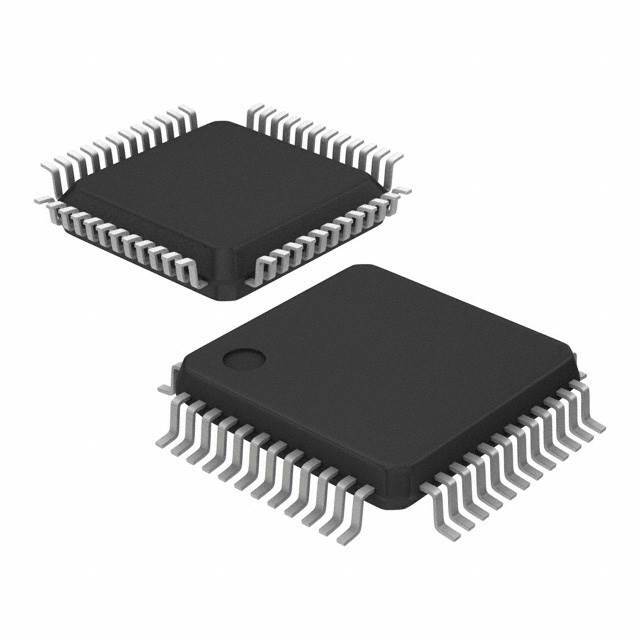

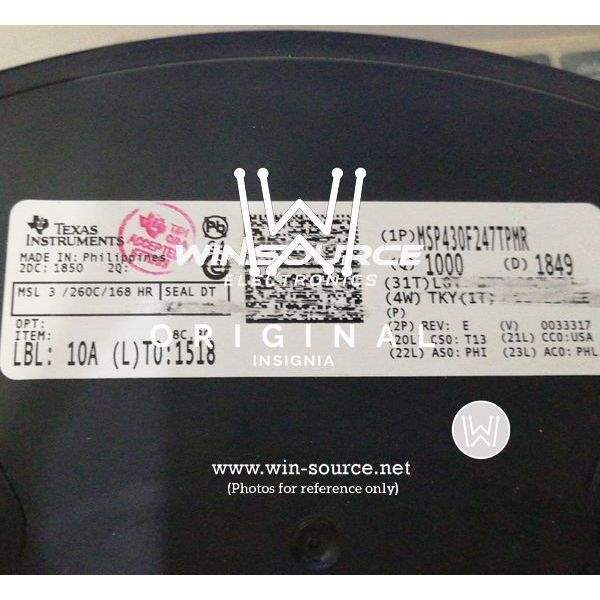

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Core Processor MSP430
Part Core Size 16-Bit
Speed(Frequency) 16MHz
Number of I/O 48
Program Memory Size 32KB (32K x 8 + 256B)
Program Memory Type FLASH
Data RAM Size 4K x 8
Supply Voltage - Operating 1.8 V to 3.6 V
Data Converters A/D 8x12b
Temperature Range - Operating -40°C to 105°C (TA)
Case / Package 64-LQFP (10x10)
Win Source Part Number 024465-MSP430F247TPM
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MSP430F247TPM CAD Model

Description

The MSP430F247TPM is a product from the globally renowned electronics company, Texas Instruments.

  • CPU: 16-bit RISC CPU
  • Registers: 16-bit registers
  • DCO Wake-up: less than 6 microseconds
  • Flash Memory: 32KB + 256B Flash memory
  • RAM: 1KB RAM
  • A/D converter: 12-bit A/D converter
  • Interfaces: two universal serial communication interfaces (USCI)
  • I/O Pins: 32 I/O pins
  • Communication Modes: UART, SPI, and I2C
  • Package: 64-pin LQFP (Low-profile Quad Flat Package)
