The OPA452TAG3 from Texas Instruments is a robust, high-voltage, and high-current operational amplifier designed to deliver excellent performance for a wide range of applications. This operational amplifier is capable of operating with supply voltages up to ±30V, and it features a high output current of up to 50mA, making it ideal for driving a diverse set of loads.

Key Features:

• Wide Supply Range: The OPA452TAG3 can operate from a dual supply voltage ranging from ±10V to ±30V or a single supply voltage ranging from 20V to 60V, providing versatility in various application circuits.
• High Output Current: With an output current capability of 50mA, this operational amplifier can drive heavier loads than typical op-amps, making it suitable for power-intensive applications.
• Thermal Protection: Equipped with internal thermal shutdown protection, the OPA452TAG3 ensures reliable operation by preventing damage due to overheating.
• Wide Output Voltage Swing: The device offers a wide output voltage swing, which is typically within 1V of the supply rails, maximizing the dynamic range in signal processing applications.
• Robust Design: The OPA452TAG3 is designed to withstand harsh conditions, featuring an extended industrial temperature range from -40°C to +85°C.

Applications:

The operational amplifier is well-suited for a variety of applications that require high voltage and current handling capabilities. These include:

• Transducer Amplifiers
• Test Equipment
• Power Supplies
• Motor Controls
• Audio Amplifiers
• Industrial Process Controls

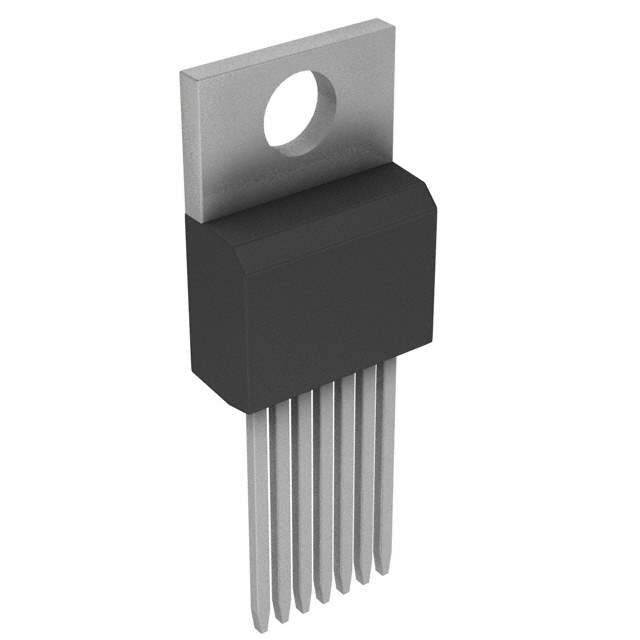

The OPA452TAG3 is available in a TO-220 package, which aids in heat dissipation and allows for easier mounting on a heatsink when used in power applications. This, combined with its wide operating range and protective features, makes the OPA452TAG3 a reliable choice for engineers and designers looking for an operational amplifier that can handle demanding conditions while providing high-level performance.
