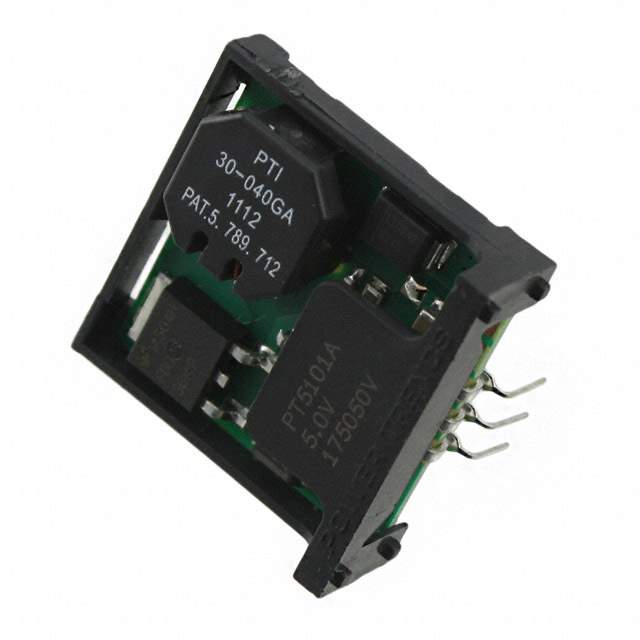

Same model may have multiple batches, images only for reference.

PT5105A

Name: PT5105A
Brand: Texas Instruments
SKU: 283043
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PT5105A
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	REG SW 6.5V 1A 3PSIP HRZ
Datasheet	PT5105A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PT5100
Packaging	Tray
Type	Linear Regulator Replacement
Number of Outputs	1
Voltage - Input (Min)	10.5V
Voltage - Input (Max)	38V
Voltage - Output 1	6.5V
Current - Output (Max)	1A
Power (Watts) - Manufacture Series	6W
Applications	ITE (Commercial)
Features	OCP, OTP
Mounting Style	Through Hole, Right Angle
Package	3-SIP Module
Size / Dimension	1.00" L x 1.02" W x 0.38" H (25.4mm x 25.9mm x 9.7mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	90%
Power (Watts) - Max	6.5W
Win Source Part Number	131874-PT5105A
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PT5105A CAD Model

Alternative Products

Description

The PT5105A from Texas Instruments is a highly efficient and reliable power module, designed to provide optimum performance in a wide array of applications.

Output Voltage: 12V
Input Voltage Range: 13.2V to 60V
Efficiency: Up to 90%
