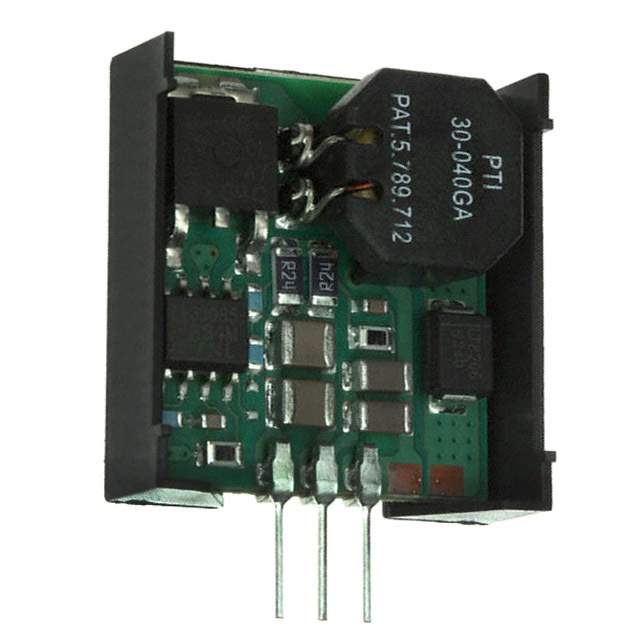

Overview of Texas Instruments PT78NR106V

The Texas Instruments PT78NR106V is a highly efficient, reliable, and compact non-isolated switching regulator designed to simplify power supply design. This regulator is part of the PT78NR100 series, which is known for its ease of use and robust performance. The PT78NR106V is an ideal choice for applications that require a fixed output voltage in a space-constrained environment.

Key Features

• Output Voltage: The PT78NR106V provides a fixed output voltage of 6V, which is suitable for a wide range of low-voltage applications.
• Output Current: It is capable of delivering up to 1.5A of output current, making it suitable for powering small to medium-sized electronic devices.
• High Efficiency: With its advanced switching technology, the PT78NR106V achieves high efficiency, which helps to minimize heat generation and improve system reliability.
• Wide Input Voltage Range: The device operates over a broad input voltage range, accommodating variations in supply voltage and ensuring stable operation.
• Thermal Protection: The built-in thermal protection feature safeguards the regulator from overheating, thereby enhancing the safety and longevity of the product.
• Easy Integration: The PT78NR106V comes in a SIP (Single In-line Package) form factor, making it easy to integrate into a variety of printed circuit board designs.
• No External Components Required: This regulator is designed to work without the need for external components, which simplifies design and reduces overall system cost.

Applications

The PT78NR106V is suitable for a diverse range of applications, including but not limited to:

• Industrial controls
• Telecommunications equipment
• Consumer electronics
• Computing devices
• Portable battery-powered devices

With its combination of performance, ease of use, and compact size, the PT78NR106V from Texas Instruments is an excellent choice for designers looking to implement a reliable power solution in their next project.
