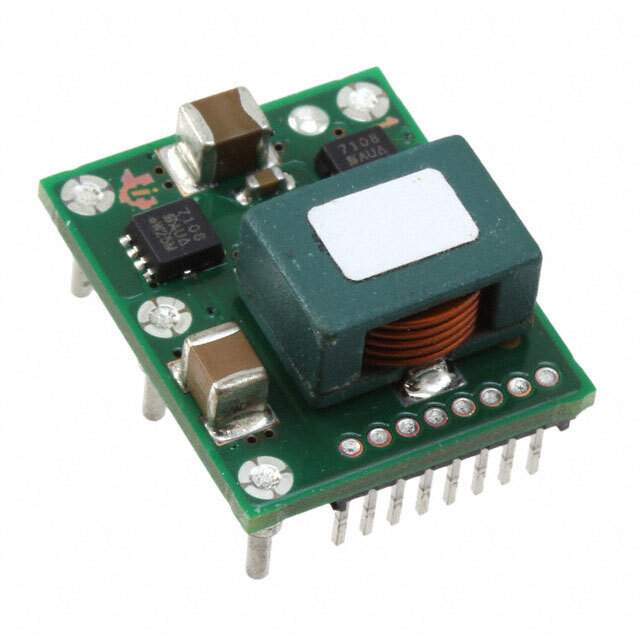

The PTD08A015WAD is a high-performance, integrated power solution module from Texas Instruments, designed to meet the demanding power requirements of modern electronic devices. This compact, non-isolated module features an adjustable output voltage, which makes it versatile for a wide range of applications, including telecommunications, computing, and industrial systems.
Key Features:
- Output Voltage Range: The PTD08A015WAD offers an adjustable output voltage range from 0.7V to 5.5V, allowing for flexibility in power design to match specific circuit requirements.
- High Efficiency: With its advanced design, this power module achieves high efficiency, which helps to minimize heat generation and improve system reliability.
- Output Current: It is capable of delivering up to 15A of output current, making it suitable for high-power applications.
- Input Voltage: The module operates over an input voltage range of 4.5V to 14V, accommodating a variety of power sources.
- Thermal Performance: The PTD08A015WAD is designed with excellent thermal performance in mind, featuring an integrated heat spreader to dissipate heat effectively.
- Power Good Signal: It includes a 'power good' signal that provides a status output to indicate when the output voltage is within regulation.
- Protection Features: The module incorporates several protection features, such as over-temperature, over-current, and under-voltage lockout, ensuring safe operation under abnormal conditions.
- Small Footprint: The compact size of the PTD08A015WAD module is ideal for space-constrained applications, without compromising on power or efficiency.
Applications:
- Servers and Storage Systems
- Networking Equipment
- Industrial Control Systems
- Telecommunication Infrastructure
- High-performance Computing
The PTD08A015WAD from Texas Instruments represents a robust power management solution that combines performance, flexibility, and reliability. Its ease of integration and comprehensive feature set make it a preferred choice for engineers looking to streamline their power supply design while ensuring consistent performance and protection for their advanced electronic systems.
