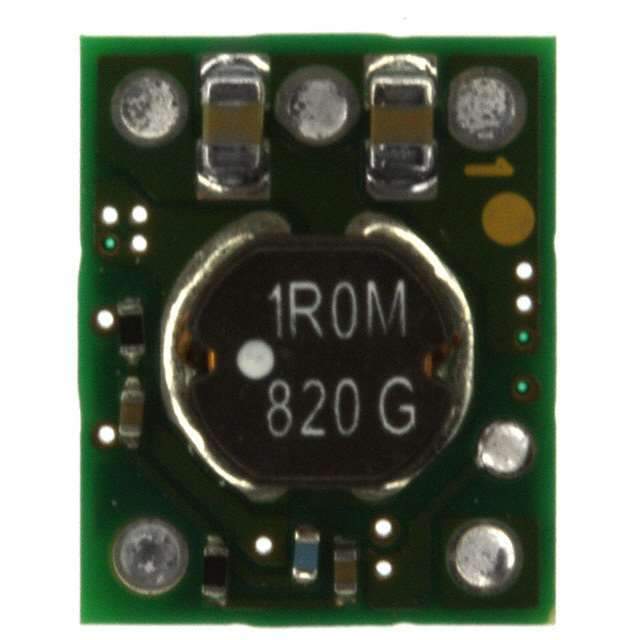

PTH04070WAD

Name: PTH04070WAD
Brand: Texas Instruments
SKU: 283800
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH04070WAD
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	REG SW 3.3V/5VIN 3A ADJ T/H
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Texas Instruments
Standard Package	90
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTH04070W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	3V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.9 ~ 3.6 V
Current - Output (Max)	3A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	5-DIP Module
Size / Dimension	0.50" L x 0.40" W x 0.31" H (12.7mm x 10.2mm x 7.9mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	92%
Power (Watts) - Max	10.8W
Catalog	PTH04070W Series
Win Source Part Number	082086-PTH04070WAD
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PTH04070WAD CAD Model

Alternative Products

Description

The PTH04070WAD is a high-performance, 15-W rated, non-isolated power module from Texas Instruments, a renowned American technology company.

Input Voltage Range: 2.95V to 5.5V
Adjustable Output Voltage: 0.7V to 3.6V
Efficiency: Up to 96% @ half load
Auto-Track Sequencing: Yes
Over-Temperature Protection: Yes
Under-Voltage Lockout: Yes
