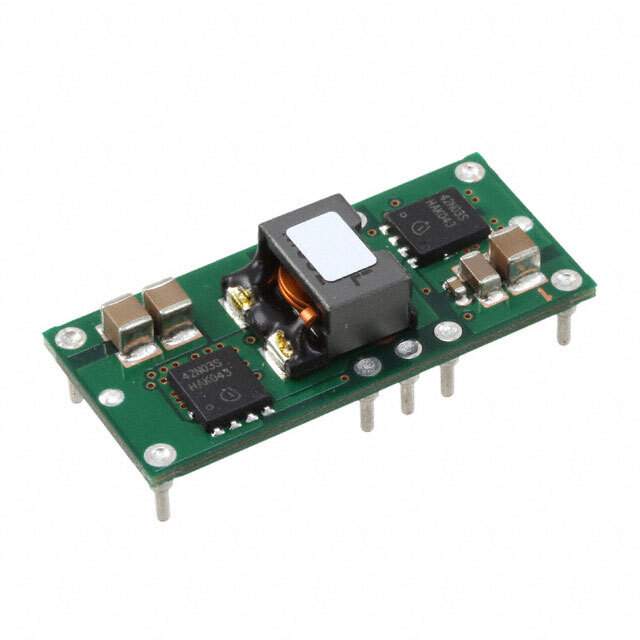

Same model may have multiple batches, images only for reference.

PTH05010YAH

Name: PTH05010YAH
Brand: Texas Instruments
SKU: 283820
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTH05010YAH
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP .55-1.8V 15A TH 10DIP
Datasheet	PTH05010YAH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH05010Y
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.55 ~ 1.8 V
Current - Output (Max)	15A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	10-DIP Module
Size / Dimension	1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	88%
Power (Watts) - Max	27W
Win Source Part Number	210339-PTH05010YAH
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH05010YAH CAD Model

Alternative Products

Description

The PTH05010YAH is a high-performance, non-isolated power module from the globally recognized technology company, Texas Instruments.

Adjustable Output Voltage Range: 0.8V to 1.8V
High Efficiency: Yes
Over-Temperature Protection: Yes
Over-Current Protection: Yes
