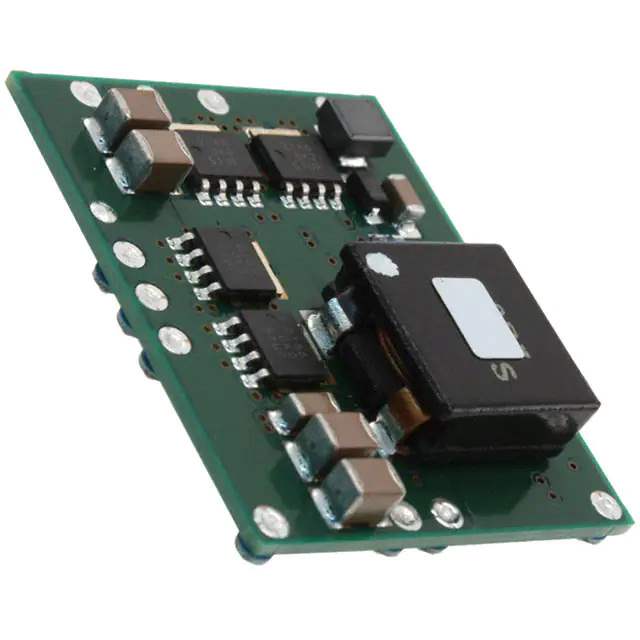

The Texas Instruments PTH05030WAST is a highly efficient, non-isolated power module that represents a remarkable advancement in the field of integrated power solutions. Designed to deliver exceptional performance, this module is part of the PTH series, which is renowned for its ability to provide reliable and stable power to demanding applications.

Key Features

• Wide Input Voltage Range: The PTH05030WAST operates on a broad input voltage range from 4.5V to 14V, making it versatile for a variety of applications and ensuring compatibility with a range of input sources.
• Adjustable Output Voltage: This module offers an adjustable output voltage from 0.8V to 3.6V, providing flexibility to meet the specific requirements of the powered device.
• High Output Current: With the ability to supply up to 6A of output current, this power module can easily handle high-power applications.
• Efficiency: The PTH05030WAST boasts a high efficiency, which minimizes heat generation and energy loss, thus improving overall system performance.
• Power Good Signal: It includes a 'power good' signal feature, which provides a status output that indicates when the power supply is stable and ready to use.
• Thermal Shutdown: Enhanced safety is provided through the thermal shutdown feature, which protects the module from overheating and potential damage.

Applications

The PTH05030WAST is suited for a wide range of applications due to its robust design and flexibility. It is particularly useful in:

• Telecommunications equipment
• Data acquisition systems
• Embedded computing
• Networking hardware such as routers and switches
• Industrial controls

Conclusion

With its combination of a wide input voltage range, high output current, adjustable output voltage, and high efficiency, the Texas Instruments PTH05030WAST power module is an excellent choice for designers looking for a compact, reliable, and high-performance power solution. Its additional safety features and the 'power good' signal make it a safe and dependable choice for a multitude of electronic applications.
