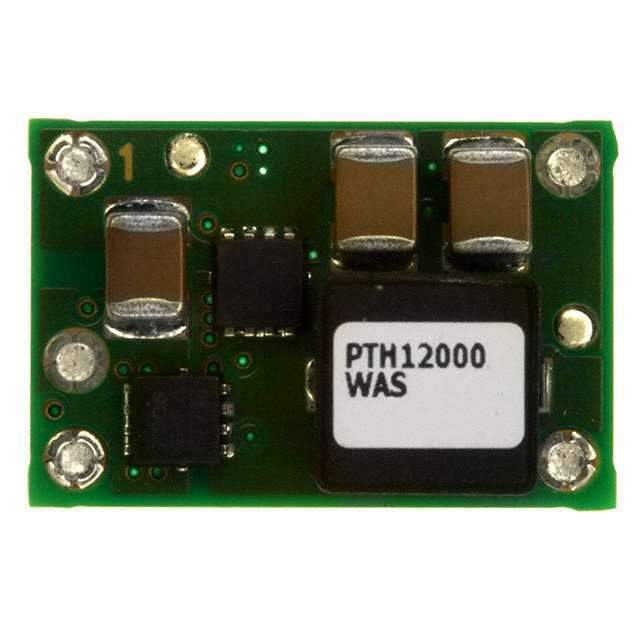

The Texas Instruments PTH12000WAST is a high-performance, non-isolated module that features adjustable output voltage, designed to meet the needs of a wide range of applications. This power module is part of the PTH12000 series, which is renowned for its exceptional reliability and efficiency. It is specifically crafted to provide a flexible power solution for complex systems where board space is at a premium and power efficiency is crucial.

Key Features

• Wide Input Range: The PTH12000WAST operates with an input voltage range of 10.8V to 13.2V, making it versatile for various applications.
• Adjustable Output Voltage: Users can adjust the output voltage from 0.8V to 1.8V, allowing for precise voltage regulation tailored to the needs of the load.
• High Efficiency: This module boasts high efficiency, which minimizes power loss and heat generation, thereby reducing the need for additional cooling systems.
• Power Density: With its compact footprint, the PTH12000WAST offers a high power density, which is ideal for space-constrained applications.
• Thermal Performance: The enhanced thermal performance ensures that the device operates within safe temperature ranges even under full load conditions.
• Remote On/Off Control: The module includes a remote on/off control feature, providing flexibility for power sequencing and management.
• Overcurrent Protection: Built-in overcurrent protection safeguards the module and the system from damage due to excessive current.

Applications

The PTH12000WAST is suitable for a variety of applications including, but not limited to:

• Telecommunications equipment
• Computing and data storage systems
• Industrial controls
• Distributed power systems

Conclusion

With its robust design and flexible features, the Texas Instruments PTH12000WAST is an excellent power solution that caters to the rigorous demands of modern electronic systems. Whether it's for industrial, computing, or telecommunication applications, this power module stands out for its adaptability, efficiency, and reliability.
