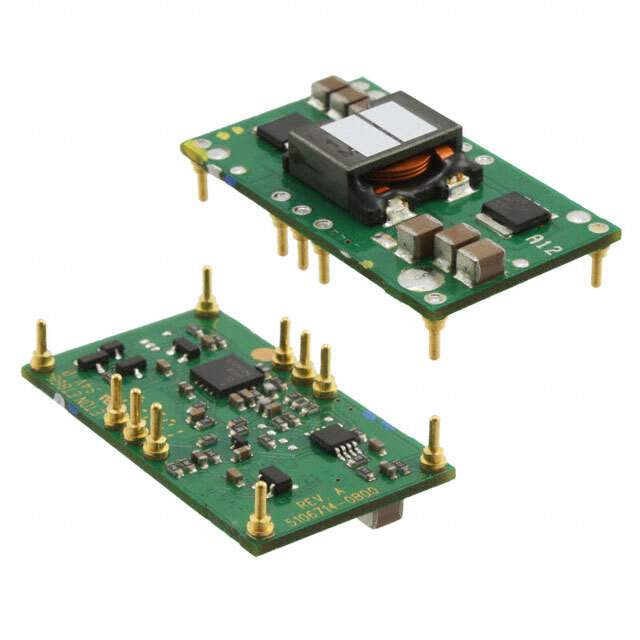

PTH12020WAH

Name: PTH12020WAH
Brand: Texas Instruments
SKU: 283869
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH12020WAH
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 1.2-5.5V 18A TH 10DIP
Datasheet	PTH12020WAH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH12020
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	1.2 ~ 5.5 V
Current - Output (Max)	18A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	10-DIP Module
Size / Dimension	1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	95%
Power (Watts) - Max	99W
Win Source Part Number	026955-PTH12020WAH
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PTH12020WAH CAD Model

Description

The PTH12020WAH is a high-performance, 12-A rated, non-isolated power module from Texas Instruments.

Input Voltage Range: 8V to 14V
Adjustable Output Voltage: 0.8V to 5.5V
High Efficiency: Up to 96% @ half load
Feature: Auto-Track sequencing
Protective features: Over-current and over-temperature protection
Feature: Under-voltage lockout
Package: Compact, through-hole
Operating Temperature Range: -40°C to +85°C
Compliance: RoHS compliant
