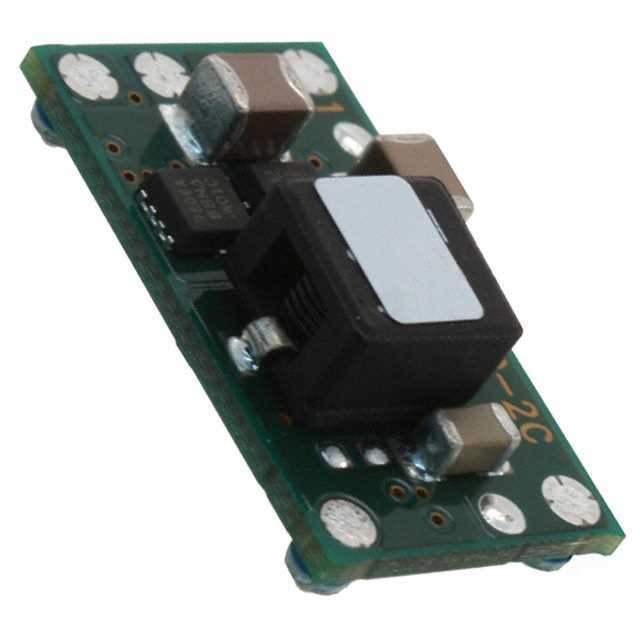

Same model may have multiple batches, images only for reference.

PTH12050YAST

Name: PTH12050YAST
Brand: Texas Instruments
SKU: 283883
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTH12050YAST
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 12VIN 6A SMD
Datasheet	PTH12050YAST Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH12050
Packaging	Reel(TR)
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	0.55 ~ 1.8 V
Current - Output (Max)	6A
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, UVLO
Mounting Style	SMD/SMT
Package	6-SMD Module
Size / Dimension	0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	88%
Power (Watts) - Max	10.8W
Win Source Part Number	127049-PTH12050YAST
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PTH12050YAST CAD Model

Alternative Products

Description

The PTH12050YAST is a highly sophisticated, non-isolated power module developed by Texas Instruments, a global leader in semiconductor technology.

Input Voltage Range: 10.8V to 13.2V
Maximum Output Current: 50A
Output Voltage: Adjustable from 0.8V to 1.8V
Efficiency: Up to 95%
Feature: Auto-track sequencing
Protection: Over-temperature and over-current protection
