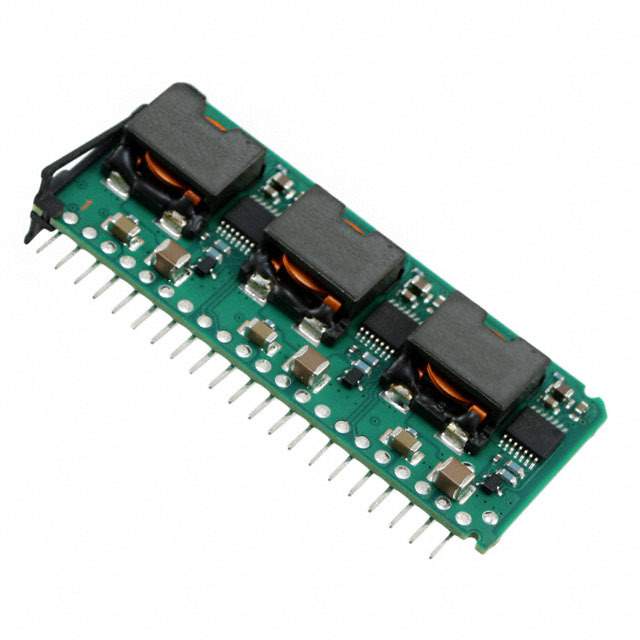

PTV08040WAH Real Image
Same model may have multiple batches, images only for reference.

PTV08040WAH

Part No PTV08040WAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description REG SW .8-3.6V 50A VERT T/H
Datasheet
PTV08040WAH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTV08040W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 8V
Voltage - Input (Max) 14V
Voltage - Output 1 0.8 ~ 3.6 V
Current - Output (Max) 50A
Applications ITE (Commercial)
Features UVLO
Mounting Style Through Hole
Package 21-DIP Module
Size / Dimension 2.36" L x 0.37" W x 0.95" H (59.9mm x 9.4mm x 24.1mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 95%
Power (Watts) - Max 180W
Win Source Part Number 210352-PTV08040WAH
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTV08040WAH CAD Model

Description

The PTV08040WAH is a high-performance, non-isolated power module manufactured by Texas Instruments, a renowned global semiconductor company.

  • Manufacturer: Texas Instruments
  • Output Voltage Range: Adjustable from 0.8V to 3.6V
  • Input Voltage Range: 4.5V to 14V
  • Output Current: Up to 10A
  • Efficiency: Up to 96%
  • Feature: Auto-Track™ Sequencing
  • Features: Under-voltage lockout (UVLO), over-current protection (OCP), and over-temperature protection (OTP)
  • Feature: On/off inhibit control
  • Design: Compact and surface-mountable
  • Package: Small, low-profile
  • Compliance: RoHS compliant
