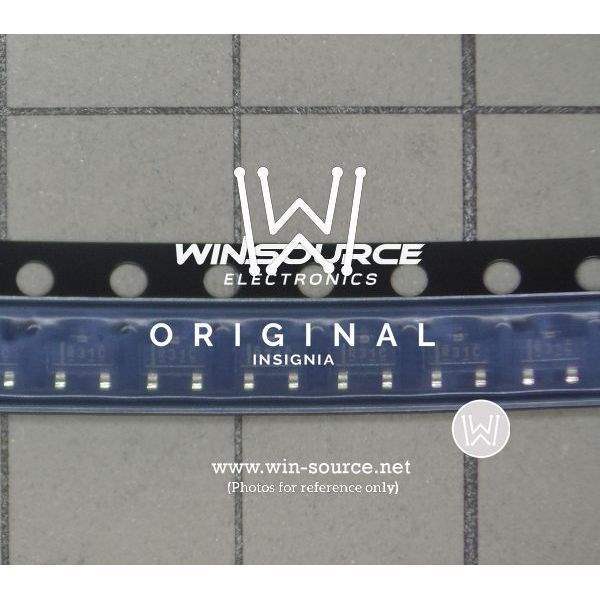

REF3125AIDBZRG4

Part No REF3125AIDBZRG4
Manufacturer Texas Instruments
Catalog PMIC - Voltage Reference
Description IC VREF SERIES 2.5V SOT23-3
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Reference Type Series
Output Type Fixed
Nominal Output Voltage (Min/Fixed) 2.5V
Output Current 10mA
Tolerance ±0.2%
Temperature Coefficient 20ppm/°C
Noise - 0.1Hz to 10Hz 33μVp-p
Noise - 10Hz to 10kHz 48μVrms
Voltage - Input 2.55 V to 5.5 V
Operating Supply Current 135μA
Temperature Range - Operating -40°C to 125°C (TA)
Mounting SMD (SMT)
Case / Package SOT-23-3
Win Source Part Number 1091778-REF3125AIDBZRG4
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian REF3125AIDBZRG4 CAD Model

Description

Product Overview: REF3125AIDBZRG4

The REF3125AIDBZRG4 is a precision, low-power, low-dropout voltage reference from Texas Instruments (TI), designed for applications requiring a high degree of accuracy and reliability. This voltage reference is part of TI's REF31xx family, which is known for its stability and low noise performance, making it ideal for high-end industrial and medical applications.

Key Features

  • High Accuracy: The REF3125AIDBZRG4 offers an impressive initial accuracy of 0.1% and ensures minimal deviation over time and temperature variations.
  • Low Dropout Voltage: With a low dropout voltage, this device can maintain accurate output even with minimal difference between the supply voltage and the reference voltage, making it suitable for battery-powered applications.
  • Low Power Consumption: It is designed for energy-sensitive applications, consuming a very low quiescent current, thereby extending battery life in portable devices.
  • Temperature Range: The device operates across a wide temperature range, from -40°C to 125°C, allowing for reliable performance in diverse environments.
  • Small Package Size: Available in a small surface-mount package, the REF3125AIDBZRG4 is ideal for space-constrained applications.

Applications

The REF3125AIDBZRG4 is versatile and can be used in a variety of applications, including:

  • Data acquisition systems (ADCs/DACs)
  • Medical and healthcare equipment
  • Industrial automation
  • Portable and battery-powered devices
  • Precision instrumentation

Product Specifications

The REF3125AIDBZRG4 provides a fixed 2.5V output voltage with a maximum output current of 10mA. It has a typical temperature coefficient of 5ppm/°C, ensuring stable performance over temperature variations. The device also features a noise reduction pin that can be used to further decrease the output noise for sensitive applications.

Quality and Reliability

As with all Texas Instruments products, the REF3125AIDBZRG4 is manufactured to high-quality standards, ensuring robust performance and longevity. TI's commitment to quality makes this voltage reference a reliable choice for precision applications where accuracy cannot be compromised.

For detailed technical specifications, application notes, and support tools, visit the Texas Instruments website or contact their support team.
