The SN65220YZBT is a robust, high-performance transient voltage suppressor device designed by Texas Instruments to protect sensitive electronics from electrostatic discharges (ESD) and other voltage-induced transient events. This device is particularly well-suited for safeguarding high-speed data lines and I/O ports in a wide array of applications, including consumer electronics, telecommunications, and industrial equipment.

Key Features

• ESD Protection: The SN65220YZBT offers excellent ESD protection exceeding IEC 61000-4-2 (Level 4) standards, ensuring the safety of electronic components during sudden voltage spikes.
• Low Capacitance: With its low loading capacitance, this device is ideal for protecting high-speed data lines without significantly affecting signal integrity.
• Low Leakage Current: It features a very low leakage current, which is critical for battery-operated devices, enhancing their battery life and overall efficiency.
• Fast Response Time: The device responds swiftly to transient events, providing immediate protection and minimizing the risk of damage to the protected circuit.

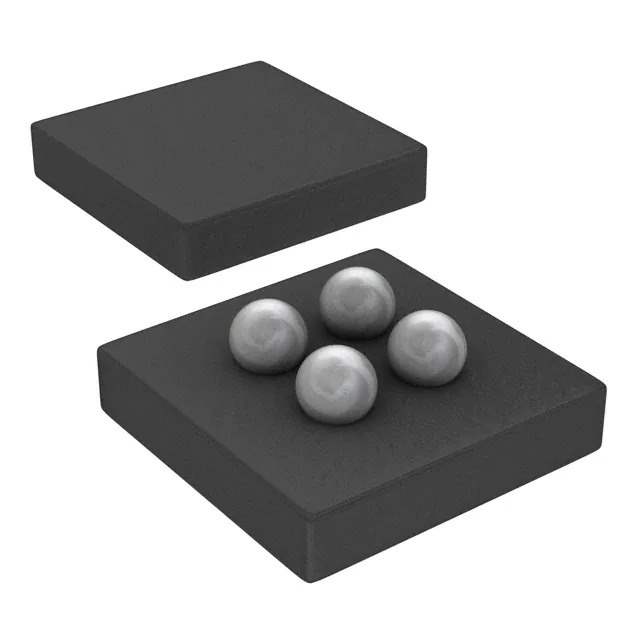

• Compact Package: Housed in a small, leadless DSBGA package, the SN65220YZBT is designed for space-constrained applications where board real estate is at a premium.

Applications

The versatility of the SN65220YZBT makes it suitable for a wide range of applications. It is commonly used in:

• USB interfaces
• Portable electronics
• Audio and video inputs
• Notebook and desktop computers
• Peripheral ports

Technical Specifications

For engineers and designers looking for reliable ESD protection for their high-speed digital interfaces, the SN65220YZBT from Texas Instruments offers a perfect blend of performance, size, and reliability. With its easy integration into existing designs, it stands as a top choice for safeguarding critical electronic components against transient voltages.
