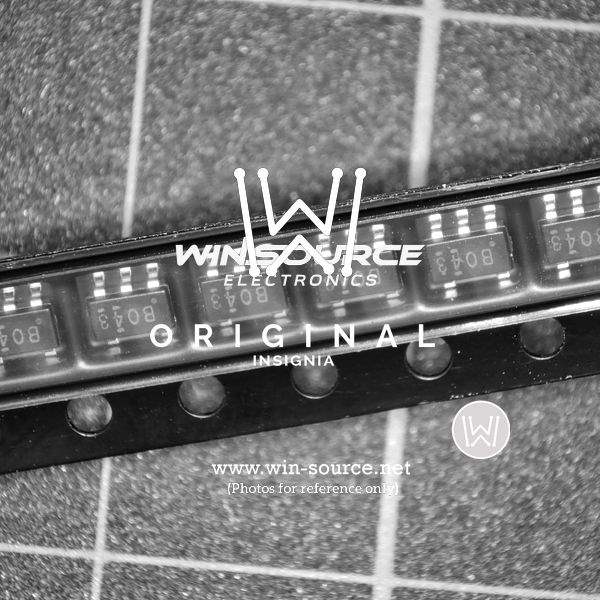

The SN74AHCT1G04DBVR from Texas Instruments is a high-performance, single-gate CMOS device that delivers the same speed as the equivalent Bipolar Schottky TTL while maintaining the CMOS low power consumption.

• Type: Single inverter gate
• Operating Voltage Range: 4.5V to 5.5V
• TTL Input Capability: Accepts TTL input signals while operating @ CMOS level power supply
• Operating Temperature: Characterized for operation from -40°C to 85°C
• Package: SOT-23-5 package
• Feature: High noise immunity
• Feature: Low power consumption
• Process: Advanced oxide-isolated, ion-implanted Schottky TTL process
• Maximum Propagation Delay Time: 8.5ns
• Maximum High-Level Output Current: -8mA
• Maximum Low-Level Output Current: 8mA
• Compliance: RoHS compliant
• Compliance: REACH compliant
