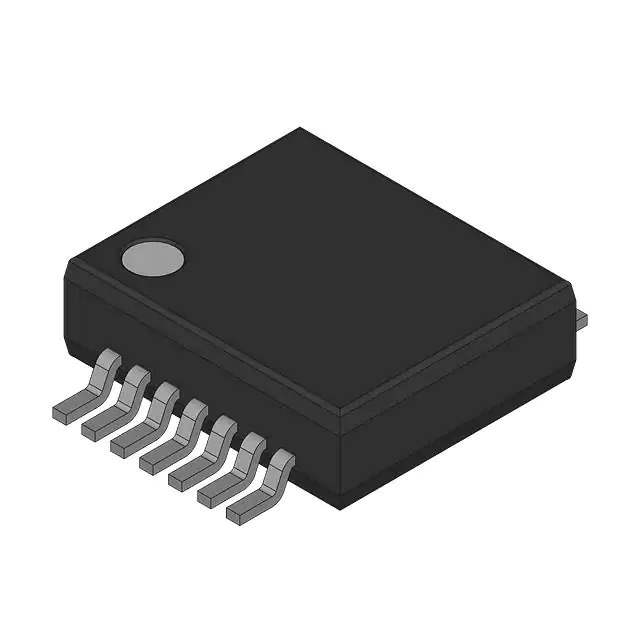

The SN74HC14DB from Texas Instruments is a high-performance, hex inverter IC with Schmitt-trigger inputs that is designed to provide noise immunity and a stable output for digital circuitry. This integrated circuit is part of the 74HC series, which are known for their high speed and low power consumption, making them ideal for a wide range of electronic applications.

Key Features

• Logic Type: Hex Schmitt-Trigger Inverters
• Operating Voltage: 2V to 6V, providing flexibility for use in various circuit designs.
• Output Current: Capable of driving up to 5.2 mA, ensuring reliable operation of connected components.
• High Noise Immunity: Schmitt-trigger action at all inputs makes the circuit tolerant to slower input rise and fall times.
• Package: Available in a small-outline package (DB), which is ideal for space-constrained applications.
• Temperature Range: Operates over a broad temperature range from -40°C to 85°C, suitable for industrial environments.

Applications

The SN74HC14DB is versatile and can be used in a variety of applications, including:

• Wave shaping and noise filtering
• Signal processing
• Glitch-free power-up / power-down circuits
• Logic level conversion
• Square wave and pulse generation

Quality and Reliability

Texas Instruments is committed to high standards of quality and reliability. The SN74HC14DB is no exception, being manufactured to the highest industry standards and rigorously tested to ensure performance and durability. This product is suitable for commercial-grade applications and is backed by Texas Instruments' reputation as a leading manufacturer in the semiconductor industry.

Technical Support and Resources

Comprehensive technical support is available for the SN74HC14DB, including detailed datasheets, application notes, and design resources to assist engineers in integrating this IC into their projects. Texas Instruments also offers customer support and an online community to address any questions or challenges that may arise.
