SN74HCS157PWR by Texas Instruments

The SN74HCS157PWR from Texas Instruments is a high-performance, quadruple 2-line to 1-line data selector/multiplexer that is designed to operate with a wide range of digital applications. This integrated circuit (IC) is part of the 74HCS family, which is known for its high-speed CMOS technology. The device is particularly suitable for implementing non-inverting digital multiplexing functions, offering users a reliable and efficient solution for routing digital signals within their electronic systems.

This multiplexer features four individual 2-line inputs and a single output for each section. With two select inputs, users can control which of the data lines are routed through to the output, allowing for flexible data management in complex digital systems. The SN74HCS157PWR also includes an output enable (OE) feature which, when activated, forces the outputs to assume a high-impedance state, effectively disconnecting the output from the circuit and preventing any potential data conflict.

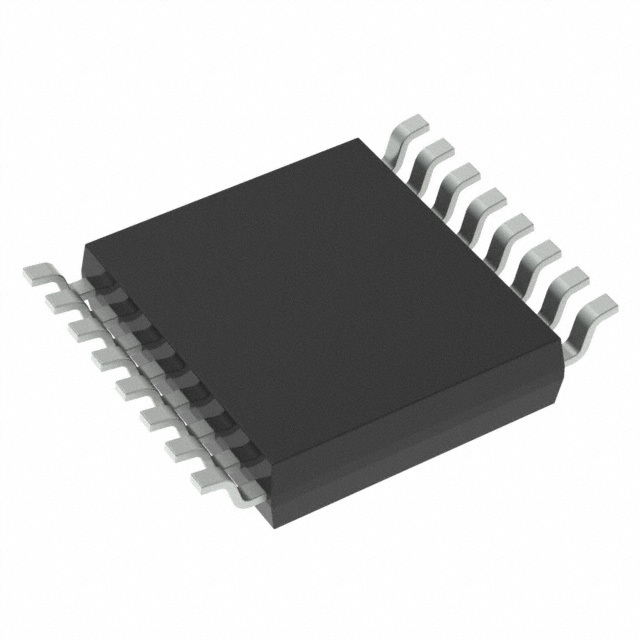

The device comes in a TSSOP (Thin Shrink Small Outline Package) with 16 pins, making it a compact solution for space-constrained applications. The SN74HCS157PWR operates over a broad voltage range from 2 V to 6 V, which allows it to be used in various systems that require different power levels. This flexibility makes it an excellent choice for interfacing with both TTL (Transistor-Transistor Logic) and CMOS (Complementary Metal-Oxide-Semiconductor) logic levels.

With its fast switching capabilities and low power consumption, the SN74HCS157PWR is ideal for use in data processing, computer networking, and telecommunications systems. Its robust design ensures high noise immunity and minimal propagation delay, which is critical for maintaining the integrity of high-speed digital signals.

Overall, the SN74HCS157PWR is a versatile and reliable component that provides designers with the ability to manage digital signals efficiently. Its compatibility with multiple logic families, coupled with its ease of use and performance characteristics, make it a valuable addition to any digital circuit designer's toolkit.
