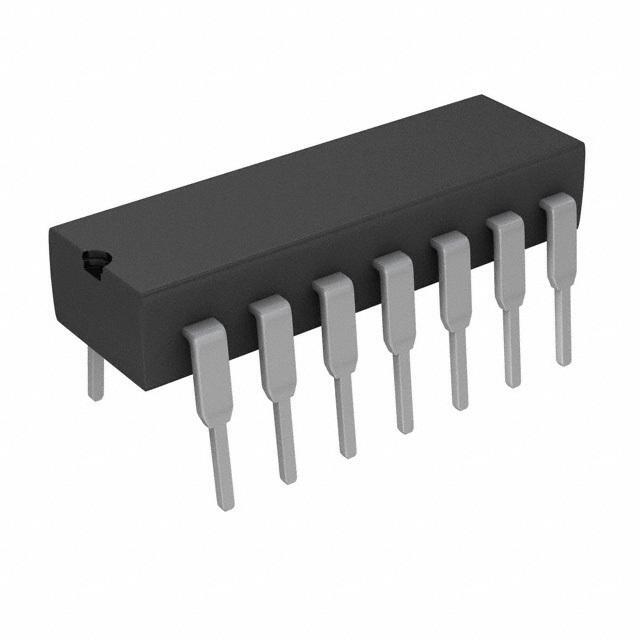

SN74LS14N Texas Instruments SN74LS14N Real Image
Same model may have multiple batches, images only for reference.
SN74LS14N Texas Instruments SN74LS14N Real Image
SN74LS14N Texas Instruments SN74LS14N Real Image
Same model may have multiple batches, images only for reference.

SN74LS14N

Part No SN74LS14N
Manufacturer Texas Instruments
Catalog Logic - Gates and Inverters
Description IC HEX SCHMITT-TRIG INV 14-DIP
Datasheet
SN74LS14N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Logic Type Inverter
Number of Circuits 6
Number of Inputs 6
Features Schmitt Trigger
Supply Voltage - Operating 4.75 V to 5.25 V
Current - Output High, Low 400μA, 8mA
Logic Level - Low 0.5V
Logic Level - High 1.9V
Max Propagation Delay @ V, Max CL 22ns @ 5V, 15pF
Temperature Range - Operating 0°C to 70°C
Mounting Through Hole
Case / Package 14-PDIP
Dimension 14-DIP (0.300", 7.62mm)
Win Source Part Number 030184-SN74LS14N
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Signal Processing
Ultra Librarian 3D Model Ultra Librarian SN74LS14N CAD Model

Description

The SN74LS14N is a high-performance, integrated circuit manufactured by Texas Instruments, a renowned leader in semiconductor solutions.

  • Type: Hex Inverter with Schmitt Triggers
  • Package: 14-Pin DIP (Dual In-line Package)
  • Hysteresis: 1.3V (typical)
  • Supply Voltage Range: 4.75V to 5.25V
  • Operating Temperature Range: 0°C to 70°C
  • Maximum Output Current: 8mA
  • Load: Drives up to 10 Low Power Schottky loads
  • Propagation Delay Time: 15ns (typical)
  • Compliance: RoHS compliant
