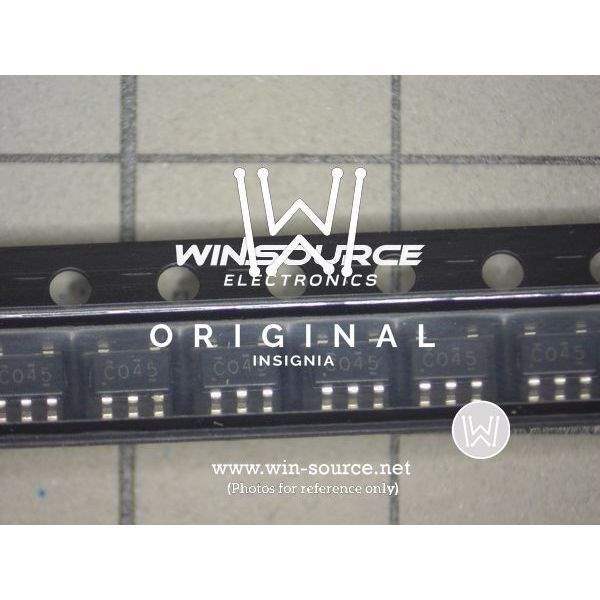

Product Overview: SN74LVC1G04DBVRE4

The SN74LVC1G04DBVRE4 is a single inverter gate designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This tiny yet powerful component is part of the LVC family, which stands for Low-Voltage CMOS, indicating that it operates at a low power supply range while maintaining CMOS logic level compatibility.

The device is created to ensure optimal performance in a variety of electronic applications. It is capable of functioning with a power supply voltage ranging from 1.65V to 5.5V, which makes it versatile for use in systems that require different voltage levels. This feature is particularly useful for battery-operated and portable devices where power efficiency is crucial.

The SN74LVC1G04DBVRE4 is characterized by its Schmitt-trigger action at all inputs, which makes the circuit tolerant to slower input rise and fall times. This attribute is especially beneficial in environments where signal integrity can be compromised by noise or longer wire lengths. The Schmitt-trigger feature ensures that the device can handle such conditions by providing a cleaner output signal transition.

This inverter gate comes in a small SOT-23-5 package, which is designed for space-saving on PCBs (Printed Circuit Boards). The compact form factor is ideal for modern electronic designs where board space is at a premium. Despite its small size, it offers high drive capability and can source or sink up to 32 mA at the output, making it suitable for driving loads with higher current requirements.

The SN74LVC1G04DBVRE4 also boasts an impressive propagation delay time, ensuring swift and reliable logic operations, which is critical for high-speed data processing and communication systems. Additionally, it features balanced propagation delays and transition times, which contribute to the device's overall performance by providing consistent and predictable timing characteristics.

In summary, the SN74LVC1G04DBVRE4 by Texas Instruments is a high-performance, low-power single inverter gate that is designed for a wide range of applications. Its low-voltage operation, Schmitt-trigger inputs, compact packaging, and strong driving capabilities make it a go-to choice for designers looking to create efficient and reliable electronic systems.
