The SN75DP119RHHR is a cutting-edge display interface IC designed and manufactured by Texas Instruments. This high-performance device serves as a DisplayPort to HDMI/DVI Level Shifter, enabling seamless connectivity and signal conversion between different display standards. It is the perfect solution for applications requiring the integration of DisplayPort sources with HDMI or DVI displays.

Key Features

• DisplayPort 1.1a Compliant: The SN75DP119RHHR adheres to the DisplayPort 1.1a standard, ensuring compatibility with a wide range of DisplayPort sources.
• HDMI 1.3 and DVI Compliant: This device supports HDMI 1.3 and DVI output, offering a high degree of flexibility for interfacing with various display types.
• High Resolution Support: It enables the transmission of high-resolution video, supporting up to 1080p at 60Hz or WUXGA (1920x1200) resolution, ensuring crystal-clear image quality for demanding multimedia applications.
• Integrated Level Shifting: The level shifting functionality allows for seamless signal conversion between the differing voltage levels of DisplayPort and HDMI/DVI interfaces.
• Low Power Consumption: Designed with power efficiency in mind, the SN75DP119RHHR minimizes power usage, making it suitable for energy-sensitive designs.
• Robust ESD Protection: The device includes built-in Electrostatic Discharge (ESD) protection circuitry, safeguarding the IC from potential damage due to static discharge events.

Applications

The SN75DP119RHHR is ideal for a broad array of applications, including:

• Desktop and Laptop PCs
• Docking Stations
• Graphics Cards
• Monitors, Projectors, and HDTVs
• Home Theater Systems
• Professional AV Equipment

Package and Quality

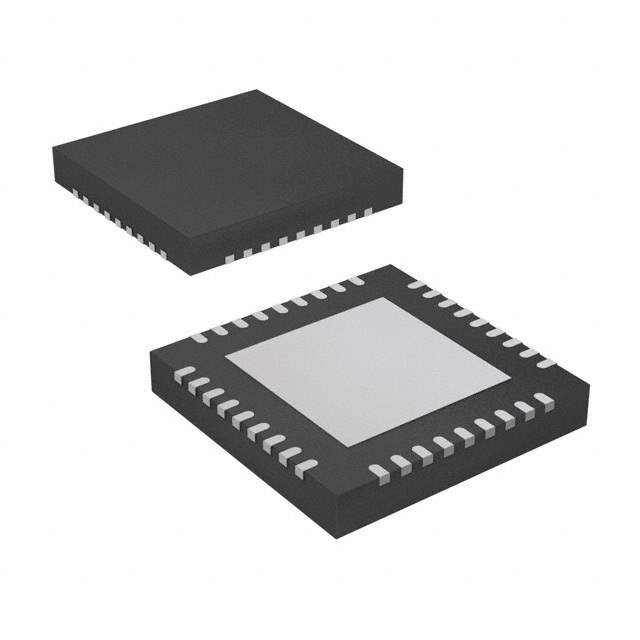

This device comes in a compact VQFN (Very Thin Quad Flat Non-leaded) package, which offers a space-saving footprint for PCB designs. The SN75DP119RHHR is also available in a tape and reel format, facilitating efficient assembly for high-volume production. Texas Instruments is committed to high-quality standards, ensuring that this product meets rigorous reliability and performance criteria.

For detailed technical specifications, application notes, and support resources, please visit the Texas Instruments official website or contact their customer support team.
