Overview of Texas Instruments TAS5342ADDVR

The TAS5342ADDVR is a high-performance, integrated stereo digital amplifier power stage designed by Texas Instruments to deliver exceptional audio quality and efficiency. This advanced component is an ideal solution for compact digital audio applications such as DVD receivers, Blu-ray players, home theater systems, and digital speaker systems. With its state-of-the-art technology, the TAS5342ADDVR provides a seamless and powerful audio experience for both audiophiles and casual listeners alike.

Key Features

• Output Power: The TAS5342ADDVR is capable of delivering up to 100W per channel into a 6Ω load, ensuring robust and dynamic audio playback for a range of speaker configurations.
• High Efficiency: With an advanced closed-loop architecture, the device achieves greater than 90% efficiency, minimizing heat dissipation and allowing for smaller heat sinks and overall system size.
• Advanced Modulation Techniques: It utilizes PurePath HD technology to provide low distortion across the audio band and superior sound quality.
• Integrated Feedback: The device features an integrated feedback design that reduces the number of external components required, simplifying the circuitry and improving reliability.
• Mute and Standby Functions: Built-in mute and standby functions allow for power savings and easy integration into consumer electronics with power management features.

Product Specifications

• Part Number: TAS5342ADDVR
• Manufacturer: Texas Instruments

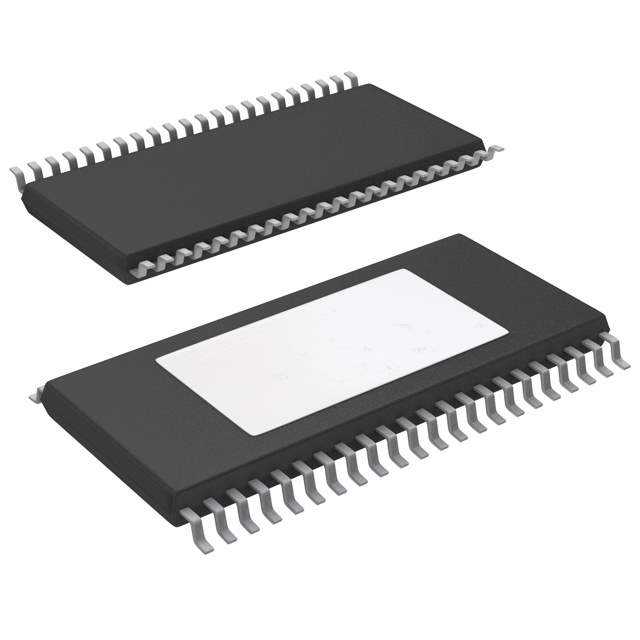

• Package / Case: 44-TSSOP (0.244", 6.20mm Width) Exposed Pad
• Supply Voltage: Operates over a wide supply voltage range from 10V to 26V.
• Thermal Management: The exposed pad package design enhances thermal performance and reliability.

Applications

The TAS5342ADDVR is highly versatile and can be used in various audio applications. Its compact size and high efficiency make it particularly well-suited for use in space-constrained environments where audio performance cannot be compromised. From home theater systems to professional audio equipment, the TAS5342ADDVR provides a reliable and high-quality solution for amplifying digital audio signals.

For designers and audio engineers looking for a high-performance audio amplifier solution, the TAS5342ADDVR from Texas Instruments offers the perfect blend of power, efficiency, and audio fidelity, making it a top choice for next-generation audio systems.
