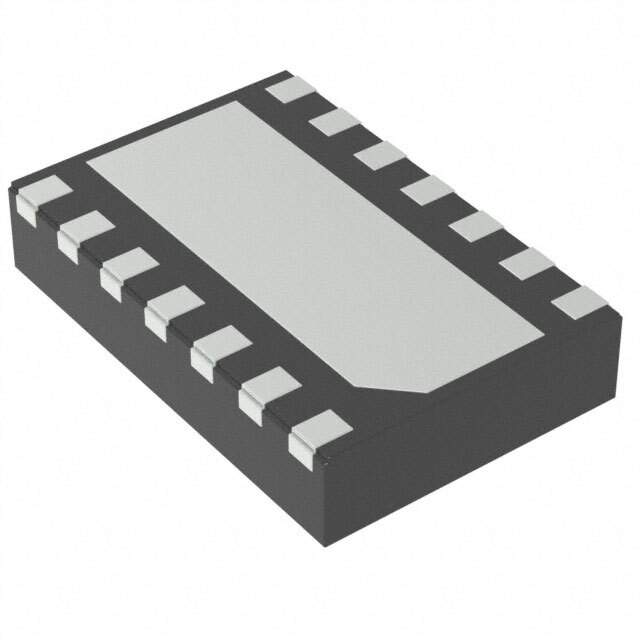

The TLIN14413DMTTQ1 from Texas Instruments is a robust, automotive-grade Local Interconnect Network (LIN) transceiver designed to interface between a LIN protocol controller and the physical bus in automotive and industrial applications. This high-performance transceiver is compliant with the LIN 2.x, and SAE J2602 standards, as well as the ISO 17987-4:2016 LIN specification.

Key Features

• Compliance with Standards: Fully compatible with LIN 2.x, SAE J2602, and ISO 17987-4:2016.
• Operating Voltage Range: Wide input voltage range from 5.5V to 27V, with a regulated 3.3V or 5V output voltage that supports other components in the system.
• Low Current Consumption: Sleep mode with reduced power consumption for battery savings in automotive applications.
• Robust Protection Features: Includes thermal shutdown, short-circuit protection, and under-voltage lockout to ensure reliability and longevity in harsh automotive environments.
• High ESD Protection: Human Body Model (HBM) ESD protection of ±15kV on the LIN bus and wakeup pin, safeguarding the device against electrostatic discharges.
• Wake-Up Capability: Supports local and remote wake-up signaling, allowing devices to be powered only when needed and conserving energy.

Applications

The TLIN14413DMTTQ1 is ideal for a wide range of applications within the automotive sector, including but not limited to:

• Body Control Modules (BCM)
• Powertrain and Engine Control Units (ECU)
• Smart Sensors and Actuators
• Door, Seat, and Mirror Modules
• Climate Controls

With its robust design and advanced protection features, the TLIN14413DMTTQ1 is an excellent choice for designers seeking a reliable LIN interface solution for their automotive or industrial projects. Its low-power operation and wake-up capabilities also make it an energy-efficient option for modern electronic systems.
