Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Type Transceiver
Number of Drivers/Receivers 2/2
Supply Voltage - Operating 1.71 V to 1.89 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)

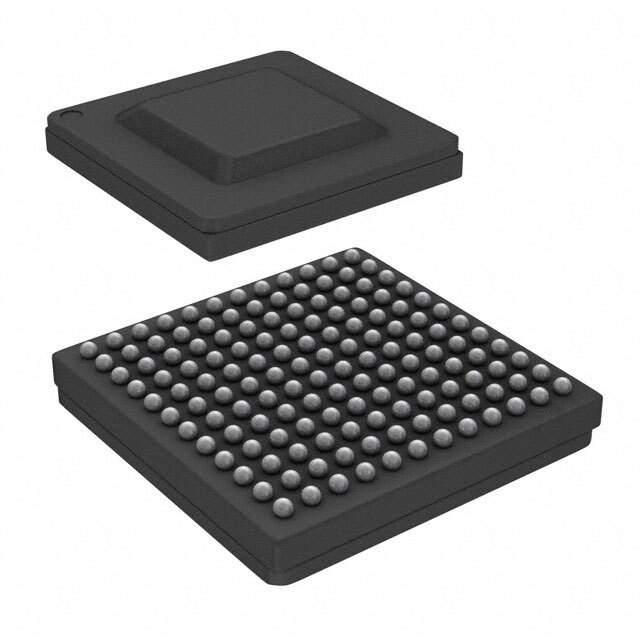

Case / Package 144-FCBGA (13x13)
Win Source Part Number 1108800-TLK10081CTR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLK10081CTR CAD Model

Description

The TLK10081CTR is a highly versatile multi-rate transceiver from Texas Instruments, designed to meet the rigorous demands of high-speed data communication in modern networking and telecommunications systems. This advanced transceiver is capable of supporting a wide range of data rates, making it an ideal solution for applications requiring flexibility and high performance.

Key Features

  • Multi-Rate Support: The TLK10081CTR is capable of operating at various data rates, ranging from 1.5 Gbps to 10.3125 Gbps, which allows for its use in a broad spectrum of applications, including backplane, copper cable, and fiber optic interfaces.
  • Energy Efficient: Designed with energy efficiency in mind, this transceiver incorporates low-power consumption technology, ensuring that systems utilizing the TLK10081CTR can maintain reduced thermal footprints and operational costs.
  • Dual-Mode Operation: It features a dual-mode operation that supports both SGMII and 1G-KX for Gigabit Ethernet applications, providing enhanced flexibility and compatibility with existing network infrastructure.
  • Robust Signal Integrity: The device includes advanced signal conditioning capabilities that help to maintain signal integrity over long cable runs and through connectors, thereby enhancing the reliability and performance of the communication link.

Applications

The TLK10081CTR is well-suited for a variety of high-speed data transfer applications including:

  • Data Center Networking Equipment
  • Telecommunications Infrastructure
  • Backplane Interconnects
  • High-Speed Servers and Routers
  • Storage Area Networks

Technical Specifications

The TLK10081CTR offers a comprehensive set of technical specifications:

  • Single-Chip 10-Gbps Transceiver with XAUI Interface
  • Hot-Plug Protection and Advanced Diagnostics Features
  • Integrated Clock and Data Recovery (CDR) for all Speeds
  • Programmable Pre-Emphasis and Equalization
  • Industrial Temperature Range: -40°C to 85°C
  • Small Form-Factor: 9x9 mm 64-pin QFN Package

With its robust feature set and adaptability to various data rates and interfaces, the TLK10081CTR from Texas Instruments stands out as a top choice for designers and engineers looking to implement a reliable, high-speed data transfer solution in their products.
