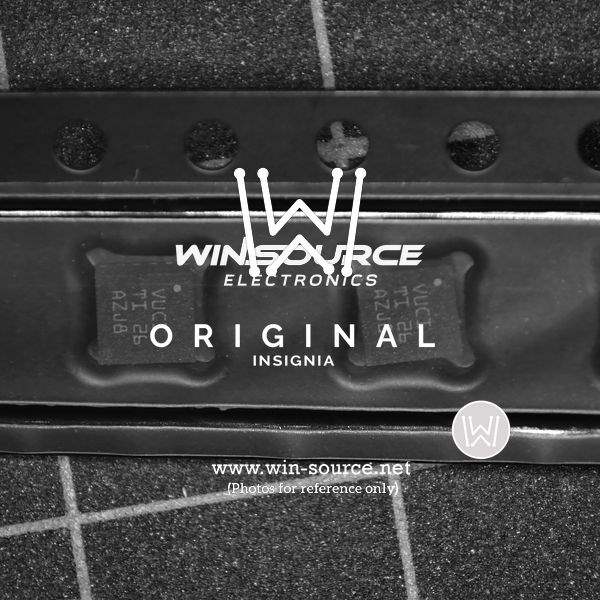

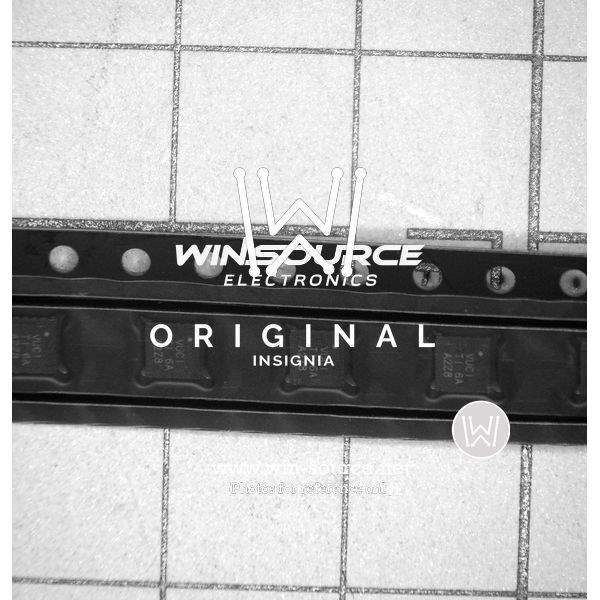

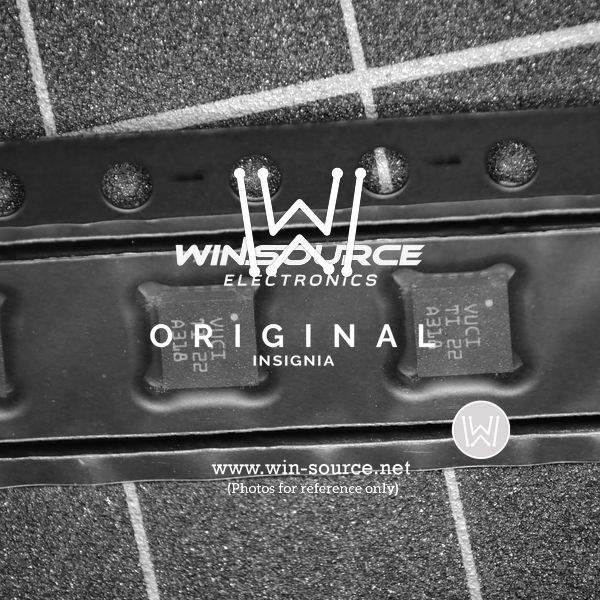

Overview of the Texas Instruments TLV62150RGTR

The Texas Instruments TLV62150RGTR is a high-efficiency synchronous step-down converter part of the industry-leading power management integrated circuits. This device is designed to deliver a continuous output current of up to 3 Amps while maintaining a compact footprint suitable for space-constrained applications.

Key Features

• Wide Input Voltage Range: The TLV62150RGTR operates over a wide input voltage range from 3V to 17V, making it versatile for various applications including industrial, automotive, and consumer electronics.
• High-Efficiency Synchronous Mode: With its synchronous step-down regulator topology, the device achieves high efficiency across a wide load range, which is critical for battery-powered devices.
• Adjustable Output Voltage: The output voltage is adjustable from 0.9V to 6V, which allows for flexibility in powering different circuits that require various voltage levels.
• Power Save Mode: It includes a power save mode that reduces the switching frequency under light-load conditions, thus increasing efficiency and conserving power.
• Thermal and Over-Current Protection: The TLV62150RGTR is equipped with thermal shutdown and over-current protection features that safeguard the device and the system under extreme conditions.
• Small Package: It comes in a 16-pin QFN package that is suitable for automated assembly processes and helps in reducing the overall solution size.

Applications

The device is ideal for a broad range of applications, including:

• Portable and battery-powered equipment
• Point of Load conversions from 5V or 12V rails
• Networking, telecom, and computing systems
• Industrial and automotive applications

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability. The TLV62150RGTR is no exception and is designed to meet the stringent requirements of the most demanding applications. It is RoHS compliant and is designed for long-term performance.

In summary, the TLV62150RGTR from Texas Instruments is an efficient, versatile, and reliable solution for a wide array of power management needs. Its combination of features and protections ensures that it can deliver the performance required for modern electronic devices.
