TLV6700QDDCRQ1 - High-Accuracy Window Comparator

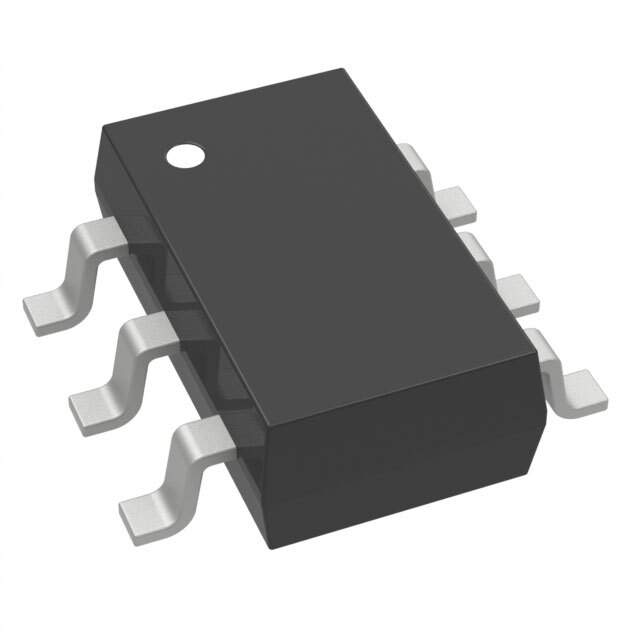

The TLV6700QDDCRQ1 from Texas Instruments is a high-precision window comparator that operates over a 1.8 V to 18 V range and is specifically designed to meet the rigorous standards of automotive applications. This advanced device is housed in a small 6-pin SOT-23 package, making it an ideal solution for space-constrained applications.

Key Features:

• Wide Supply Voltage Range: The device can function with a supply voltage ranging from 1.8 V to 18 V, accommodating a variety of automotive and industrial power systems.
• High Accuracy: Precision voltage thresholds and tight hysteresis ensure accurate monitoring, crucial for systems that require reliable and consistent operation.
• Low Quiescent Current: Its design optimizes power consumption, drawing a low quiescent current which is essential for battery-powered applications.
• Adjustable Thresholds: The device features externally adjustable thresholds that provide flexibility, allowing it to be tailored to specific application needs.
• Push-Pull Outputs: The comparator provides push-pull outputs that deliver a robust signal, eliminating the need for external pull-up resistors.
• Temperature Range: With an operational temperature range of -40°C to +125°C, it is well-suited for the harsh environments found in automotive applications.
• Automotive Qualified: The TLV6700QDDCRQ1 is qualified for automotive applications, adhering to the stringent requirements for reliability and performance in the automotive industry.

Applications:

The device is versatile and can be used in a wide array of applications, including:

• Overvoltage and undervoltage monitoring
• Windowed voltage monitoring for automotive systems
• Battery stack monitoring
• Power supply monitoring
• Signal conditioning

The TLV6700QDDCRQ1 is a reliable and flexible solution for critical monitoring tasks in automotive and industrial systems. With its high accuracy and robust design, it ensures that electronic systems operate within their intended voltage ranges, contributing to the safety and efficiency of automotive and industrial environments.
