Overview of TLV70730DQNR from Texas Instruments

The TLV70730DQNR is a high-performance, low-dropout (LDO) voltage regulator from Texas Instruments, designed to deliver a steady and reliable power supply in a wide range of applications. This regulator is especially suited for portable and battery-powered devices due to its low quiescent current, high accuracy, and small form factor.

Key Features

• Output Voltage: The TLV70730DQNR provides a fixed output voltage of 3.0V, which is ideal for powering 3V logic and analog circuits.
• High Accuracy: This device maintains excellent regulation with an accuracy of 2%, ensuring stable voltage supply even under varying load conditions.
• Low Dropout: With a typical dropout voltage of just 250 mV at full load, the TLV70730DQNR can operate efficiently even when the input voltage is close to the output voltage, which is critical for battery-operated devices.
• Low Quiescent Current: The quiescent current is as low as 35 µA, which minimizes power consumption when the device is in idle mode, thus prolonging battery life.
• High PSRR: The Power Supply Rejection Ratio (PSRR) of 65 dB at 1 kHz means that the TLV70730DQNR can effectively suppress variations in the input voltage, providing a more stable output.
• Thermal Shutdown and Overcurrent Protection: Built-in safety features protect the device and the load from damage due to overheating and excessive current draw.

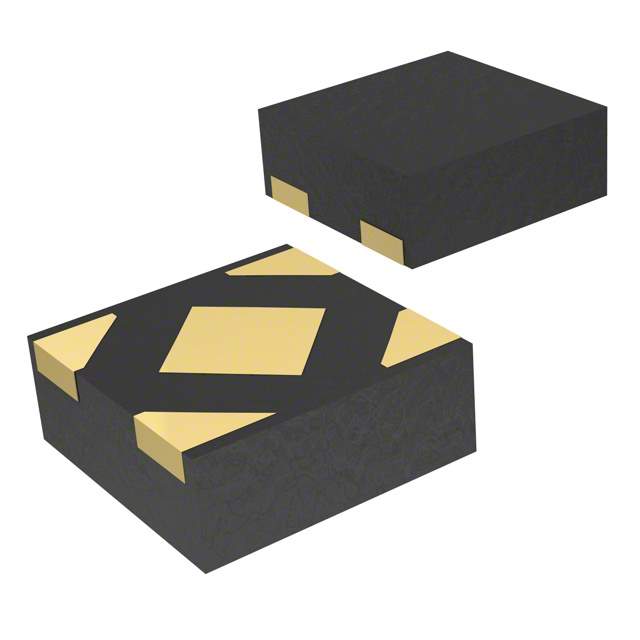

• Small Package: The regulator is available in a tiny 1mm x 1mm DQN package, making it an excellent choice for space-constrained applications.

Applications

The TLV70730DQNR is versatile and can be used in a variety of applications, including:

• Smartphones and tablets
• Wireless communication devices
• Portable media players
• Wearable technology
• Medical devices
• Power management for sensors and microcontrollers

With its combination of high performance, reliability, and compact size, the TLV70730DQNR from Texas Instruments is an excellent choice for designers looking to optimize power management in their next-generation electronic devices.
