The TMDX570LS20SMDK, part of Texas Instruments' extensive microcontroller product line, is a robust development kit designed for the Hercules™ TMS570LS20x/10x series of safety microcontrollers. Aimed at enabling quick and efficient development for automotive and industrial applications, this starter kit is an excellent resource for engineers and developers who prioritize safety, performance, and reliability.

Key Features

• High-Performance ARM Cortex-R4F Core: The TMS570LS20x/10x microcontrollers at the heart of this kit feature a 32-bit ARM Cortex-R4F core, capable of speeds up to 160 MHz, delivering the computational power needed for complex real-time processing.
• Integrated Safety Features: With a focus on functional safety, the microcontroller includes built-in features such as ECC (Error Correction Code), parity checks, lockstep CPUs, and BIST (Built-In Self-Test) to help achieve the highest levels of safety standards, including ISO 26262 and IEC 61508.
• Extensive Memory Integration: Equipped with up to 3 MB of integrated Flash memory and 256 KB of RAM, the kit supports a wide range of applications without the need for external memory components.
• Rich Peripherals Set: A variety of peripherals including CAN, SPI, ADC, N2HET, and FlexRay support a multitude of industrial and automotive applications, ensuring flexibility in design and implementation.
• Development Tools and Software: The kit is supported by Texas Instruments' HALCoGen software which provides a user-friendly GUI for generating initialization and peripheral driver code, and the safety-certified Hercules Development Kit (HDK) software.

Applications

The TMDX570LS20SMDK is ideal for safety-critical applications across various sectors. In the automotive industry, it can be used for powertrain systems, advanced driver assistance systems (ADAS), and electronic braking. In industrial settings, it is well-suited for motor control, process control, and robotics. Its reliability and safety features also make it an excellent choice for medical systems, aerospace, and transportation.

Package Contents

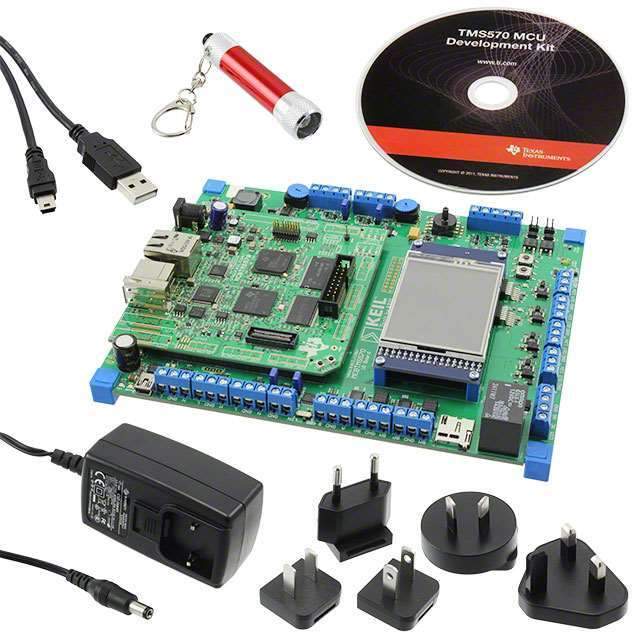

The development kit includes the TMS570LS20x/10x microcontroller evaluation board, USB cables for power and communication, an Ethernet cable, and documentation to jump-start development. Additionally, users can access online resources and support forums provided by Texas Instruments.
