Products specifications

Categories Sensors, Transducers
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Sensor Type Digital, Local
Sensing Temperature - Local -40°C to 125°C
Output Type I²C/SMBus
Supply Voltage - Operating 1.4 V to 3.6 V
Resolution 7 b
Features One-Shot, Shutdown Mode
Accuracy - Highest (Lowest) ±2°C (±3°C)
Testing Conditions -10°C to 100°C (-40°C to 125°C)
Temperature Range - Operating -55°C to 150°C
Mounting SMD (SMT)
Case / Package 4-DSBGA (1x1)
Win Source Part Number 1110017-TMP103AYFFT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in System Monitoring, Test & Measurement
Family Name TMP103
Introduction Date February 01, 2011
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian TMP103AYFFT CAD Model

Description

Product Overview: Texas Instruments TMP103AYFFT

The TMP103AYFFT is a high-precision digital temperature sensor developed by Texas Instruments, designed for a broad range of applications that require accurate temperature monitoring. This sensor is part of TI's extensive portfolio of temperature sensing solutions, known for their reliability and performance.

Key Features

  • Accuracy: The TMP103AYFFT offers excellent accuracy, with the ability to measure temperatures with a high degree of precision. It is ideal for systems where temperature accuracy is critical.

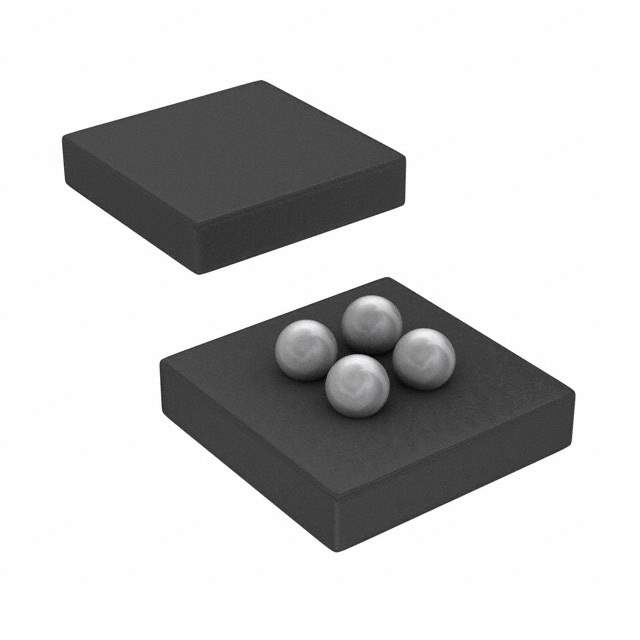

  • Size: With its ultra-small footprint, this sensor is perfect for space-constrained applications. It is housed in a compact 4-ball WCSP (Wafer Chip-Scale Package), making it an excellent choice for portable and miniaturized electronic devices.
  • Interface: It features a two-wire I2C and SMBus interface, which allows for easy integration into existing designs and straightforward communication with microcontrollers and other digital systems.
  • Low Power: The TMP103AYFFT is designed for low-power consumption, making it suitable for battery-powered devices where power efficiency is paramount.
  • Multiple Device Access: Up to eight TMP103 devices can be connected to a single bus, thanks to its built-in device address pins. This simplifies design and reduces the complexity of monitoring multiple temperature points.
  • Temperature Range: It operates over a wide temperature range, ensuring versatility across different environments and applications.

Applications

The TMP103AYFFT is used across various industries and applications, including:

  • Consumer Electronics
  • Mobile and Wearable Devices
  • Medical and Healthcare Systems
  • Industrial Equipment
  • Environmental Monitoring Systems
  • Telecommunications Infrastructure

With its combination of accuracy, small size, low power consumption, and ease of use, the Texas Instruments TMP103AYFFT temperature sensor is an excellent choice for designers looking to enhance the performance and reliability of their thermal management systems.
