Products specifications

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr STMicroelectronics
Package Box
Product Status Obsolete
Type Power Management
Function Motor Controller/Driver
Embedded Yes, MCU, 8-Bit
Utilized IC / Part ST7FMC2S4, STS8DNH3LL
Primary Attributes Motors (BLAC, BLDC, PMAC, PMDC)
Supplied Contents Board(s)
Secondary Attributes Graphical User Interface
Other Names -497-8213,STEVALIHM015V1,497-8213
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1284611-STEVAL-IHM015V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-IHM015V1 CAD Model

Description

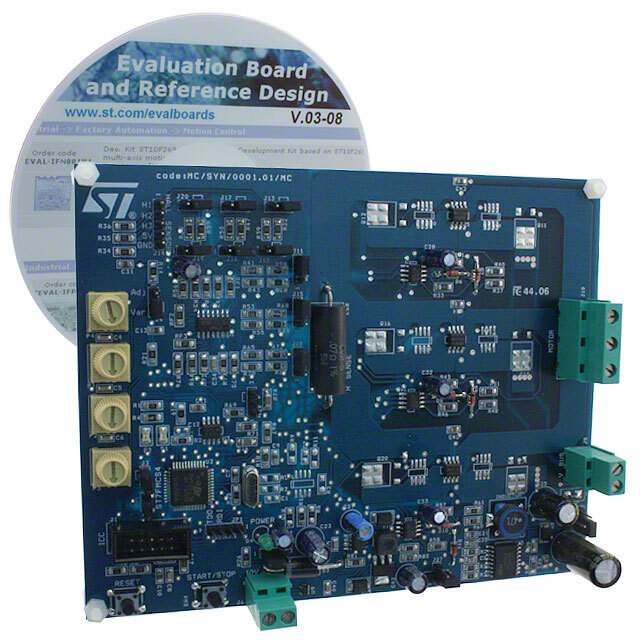

The STEVAL-IHM015V1 from STMicroelectronics is a compact, high-performance development tool designed for those looking to explore and create motor control applications. This evaluation board is specifically tailored for driving three-phase brushless DC motors, making it an ideal platform for a variety of industrial, consumer, and automotive applications.

At the heart of the STEVAL-IHM015V1 is the advanced L6230 three-phase motor driver, which is capable of driving motors with a supply voltage ranging from 8 to 52 volts. This flexibility in voltage makes the board suitable for a broad range of projects and products. The L6230 integrates a range of features including overcurrent, overtemperature, and undervoltage lockout protection, ensuring reliable operation under various conditions.

One of the key benefits of the STEVAL-IHM015V1 is its user-friendly interface. It includes a set of jumpers and potentiometers that allow for quick and easy parameter adjustments, as well as test points for convenient monitoring of signals. Additionally, the board comes with an extensive development ecosystem, including software libraries and support, to help accelerate the design process and reduce time to market.

The board supports a wide PWM frequency range and is designed with advanced features for precise motor control, such as a programmable non-dissipative overcurrent protection and a cross conduction protection. These features enable developers to fine-tune their applications for optimal performance and efficiency.

For those looking to develop applications requiring high levels of customization and control, the STEVAL-IHM015V1 provides an SPI interface, which allows for full configurability of the L6230 driver. This includes control over the decay mode, PWM frequency, and other critical motor control parameters.

In summary, the STEVAL-IHM015V1 is a versatile and powerful development tool that offers engineers and hobbyists alike a comprehensive platform for developing sophisticated motor control applications. With its robust driver IC, flexible power supply options, and extensive support, it stands as a top choice for anyone looking to harness the power of three-phase brushless DC motors in their next project.
