The TMS320F240PQS is a groundbreaking piece of technology from Texas Instruments, renowned for its high-performance digital signal processing capabilities. This DSP is part of the TMS320C2xx generation of processors, which are designed to offer cost-effective solutions for complex control applications.

Key Features

• High-Performance Static CMOS Technology: The TMS320F240PQS operates with a 20-ns instruction cycle time with a 50-MHz system clock, ensuring rapid data processing and real-time operation.
• Integrated Peripherals: This DSP includes a variety of on-chip peripherals such as a quadrature encoder pulse circuit, event capture units, interrupt control units, and a serial communication interface, which reduce the need for external components and simplify system design.
• Advanced Motor Control: With its specialized PWM and capture inputs, the TMS320F240PQS is ideal for motor control applications, providing precise control for both induction and brushless motors.
• On-Chip Memory: It comes equipped with 16K words of Flash memory, 544 words of data RAM, and 1K words of additional RAM to facilitate efficient data handling and storage.
• Robust Instruction Set: The processor features a rich instruction set optimized for control applications, including instructions for bit manipulation, non-aligned loads and stores, and repeat operations.

Applications

The TMS320F240PQS is versatile and can be used in a wide range of applications. It is particularly well-suited for:

• Industrial control systems
• Automotive control systems
• Robotics
• Electric motor control
• Power management systems

Quality and Reliability

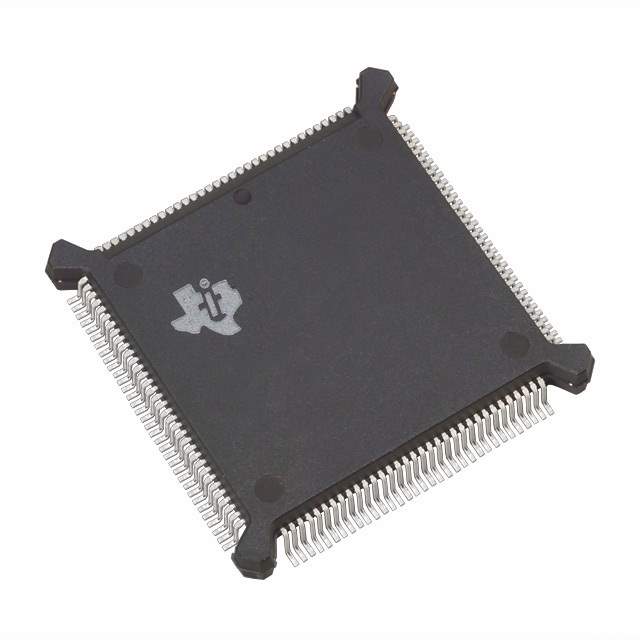

As with all Texas Instruments products, the TMS320F240PQS is manufactured to the highest quality standards, ensuring reliability and durability for industrial and automotive environments. The device is available in a 132-pin plastic quad flatpack (PQFP) package, which is suitable for surface mount technology (SMT) and provides a compact footprint for space-constrained applications.
