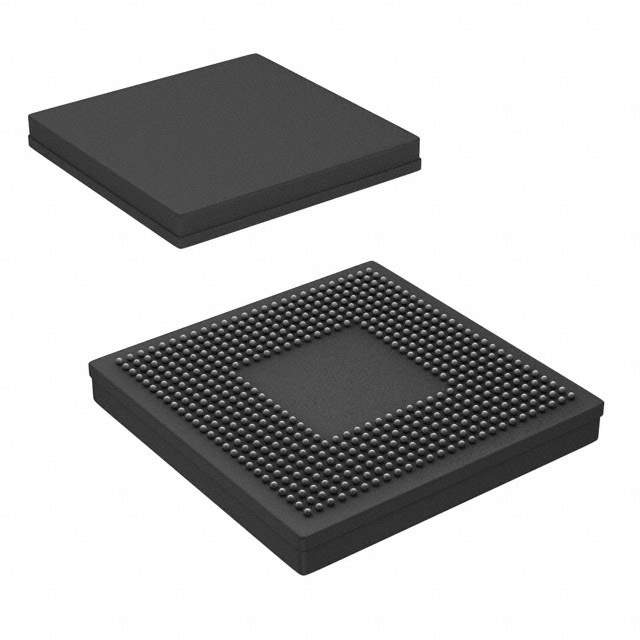

Overview of Texas Instruments TMS32C6414DGLZ6E3

The TMS32C6414DGLZ6E3 is a high-performance digital signal processor (DSP) from Texas Instruments, renowned for its robust processing capabilities and efficiency in handling complex signal processing tasks. This product is part of the TMS320C64x series, which is designed to meet the demanding requirements of applications in telecommunications, industrial, medical, and multimedia sectors.

Key Features

• Advanced DSP Core: At the heart of the TMS32C6414DGLZ6E3 lies a powerful C64x+ DSP core that operates at a frequency of up to 1 GHz, providing the computational horsepower needed for intensive signal processing operations.
• Large On-Chip Memory: The device includes a large on-chip memory comprising 1MB of Level 2 (L2) cache, which can be configured as mapped RAM or cache, enhancing the flexibility and performance of the DSP.
• Enhanced Peripheral Set: A rich set of peripherals accompanies the DSP core, including multiple high-speed communication ports, an inter-integrated circuit (I2C) bus, and a host of general-purpose input/output (GPIO) pins for versatile connectivity options.
• High-Speed Interfaces: The TMS32C6414DGLZ6E3 features a variety of high-speed interfaces such as Viterbi coprocessors, Turbo Decoder coprocessors, and Ethernet MACs, which are essential for data-intensive applications.
• Optimized for Low Power Consumption: Despite its impressive performance, the DSP is designed to maintain low power consumption, making it suitable for applications where power efficiency is critical.

Applications

The Texas Instruments TMS32C6414DGLZ6E3 is ideal for a wide range of applications, including:

• Wireless base stations and infrastructure
• Medical imaging systems
• Professional audio equipment
• Industrial control and automation systems
• Video and image processing
• Test and measurement equipment

Quality and Reliability

As with all Texas Instruments products, the TMS32C6414DGLZ6E3 is manufactured to the highest quality standards, ensuring reliability and performance in even the most demanding conditions. It is also backed by Texas Instruments' comprehensive technical support and documentation, providing developers with the resources they need to integrate this DSP into their designs effectively.
