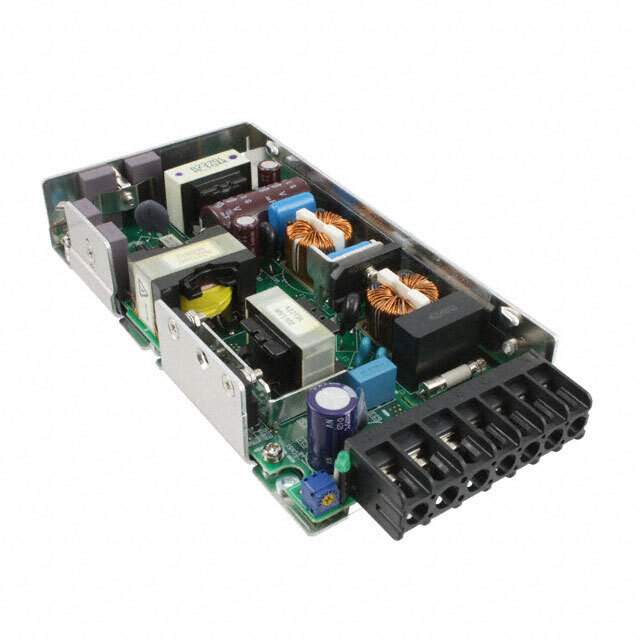

HWS100-5/HD Real Image
Same model may have multiple batches, images only for reference.

HWS100-5/HD

Part No HWS100-5/HD
Manufacturer TDK-Lambda Americas Inc.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 5V 100W / Open Frame AC DC Converters 1 Output 5V 85 ~ 265 VAC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr TDK-Lambda Americas Inc
Series HWS/HD (100W)
Package Bulk
Product Status Obsolete
Type Open Frame
Number of Outputs 1
Voltage - Input 85 ~ 265 VAC
Voltage - Output 1 5V
Current - Output 1 20 A
Power (Watts) 100W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 86%
Temperature Range - Operating -40°C ~ 71°C (With Derating)
Features Adjustable Output, DC Input Capable, Remote Sense, Universal Input
Mounting Type Chassis Mount
Size / Dimension 6.30" L x 1.10" W x 3.23" H (160.0mm x 28.0mm x 82.0mm)
Approval Agency CE
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Win Source Part Number 1351081-HWS100-5/HD
Ultra Librarian 3D Model Ultra Librarian HWS100-5/HD CAD Model

Description

The HWS100-5/HD is an open frame AC-DC converter that features a power output of 100W.

  • Power Output: 100W
  • Voltage Input: 85 ~ 265 VAC
  • Current Output: 20 A
  • Voltage Output: 5V
  • Efficiency: 86%
  • Package: Chassis Mount
  • Standard Package: 1
  • Application: Power Supplies - External/Internal (Off-Board) - AC DC Converters applications.
  • Manufacturer: TDK-Lambda Americas Inc
