TMUX4052PWR Texas Instruments – Price, Stock & Datasheet

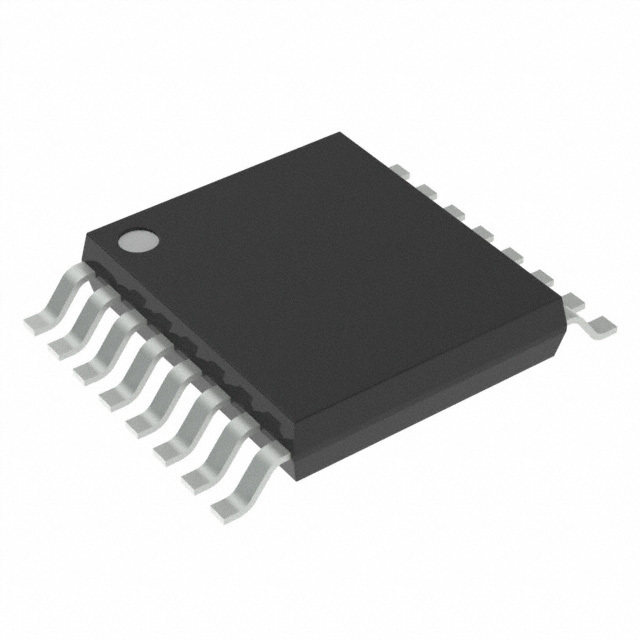

Same model may have multiple batches, images only for reference.

TMUX4052PWR

Part No TMUX4052PWR
Manufacturer Texas Instruments
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH SP4TX2 240OHM 16TSSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)InterfaceAnalog Switches, Multiplexers, Demultiplexers
Manufacturer Texas Instruments
Part Status Active
Switch Circuit SP4T - Open
Number of Circuits 2
On-State Resistance (Max) 240Ohm
Channel-to-Channel Matching (ΔRon) 2Ohm (Typ)
Voltage - Supply, Single (V+) 5V ~ 24V
Switch Time (Ton, Toff) (Max) 110ns, 85ns (Typ)
-3db Bandwidth 700MHz
Channel Capacitance (CS(off), CD(off)) 3pF, 5pF
Crosstalk -90dB @ 1MHz
Operating Temperature -55°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 16-TSSOP
Ultra Librarian 3D Model Ultra Librarian TMUX4052PWR CAD Model
