Overview of Texas Instruments TPD1E05U06DPYR

The TPD1E05U06DPYR is a state-of-the-art ESD protection device from Texas Instruments, designed to safeguard high-speed interfaces from electrostatic discharge (ESD) events. This ultra-compact, bidirectional TVS (Transient Voltage Suppressor) diode array is engineered to protect sensitive electronic components by clamping harmful voltage spikes caused by ESD, thus ensuring the reliability and longevity of your applications.

Key Features

• ESD Protection: The TPD1E05U06DPYR offers excellent ESD protection for high-speed data lines, capable of withstanding ESD strikes up to ±10 kV (IEC 61000-4-2, contact discharge) and ±20 kV (IEC 61000-4-2, air-gap discharge).
• Low Capacitance: With a low loading capacitance of 0.5 pF (typical), this device is ideal for protecting high-speed data lines without significantly affecting signal integrity.
• Small Package Size: The TPD1E05U06DPYR comes in an ultra-small DPN package, measuring just 0.6 mm x 0.3 mm (0201 footprint). This makes it suitable for space-constrained applications.
• Low Leakage Current: The device features a low leakage current of 10 nA (maximum), ensuring minimal power consumption when in standby mode.
• Wide Operating Range: It can operate over a broad temperature range from -40°C to +125°C, making it versatile for various environments.

Applications

The TPD1E05U06DPYR is particularly useful for protecting high-speed data interfaces such as USB 2.0, HDMI, and VBUS lines. Its low capacitance makes it suitable for applications where maintaining signal integrity is critical, such as in portable electronics, computing devices, consumer electronics, and communication systems.

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the TPD1E05U06DPYR is no exception. It is manufactured to meet the highest standards, ensuring both performance and durability for your critical applications. With its robust ESD protection and small form factor, the TPD1E05U06DPYR is an excellent choice for designers looking to enhance the ESD robustness of their high-speed data interfaces.

Ordering Information

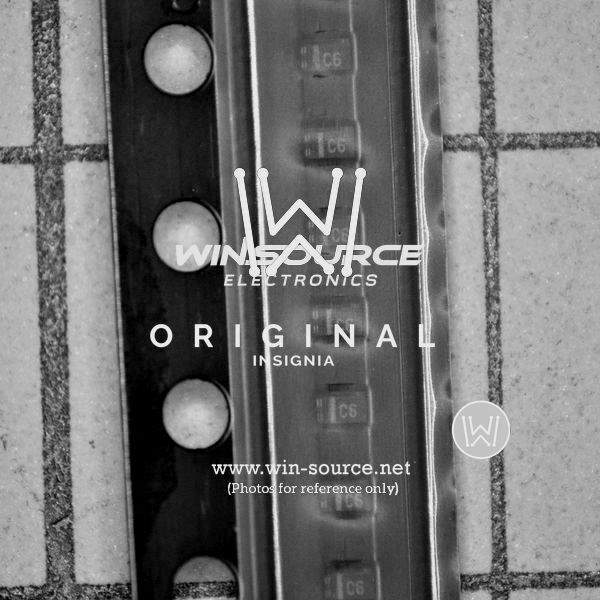

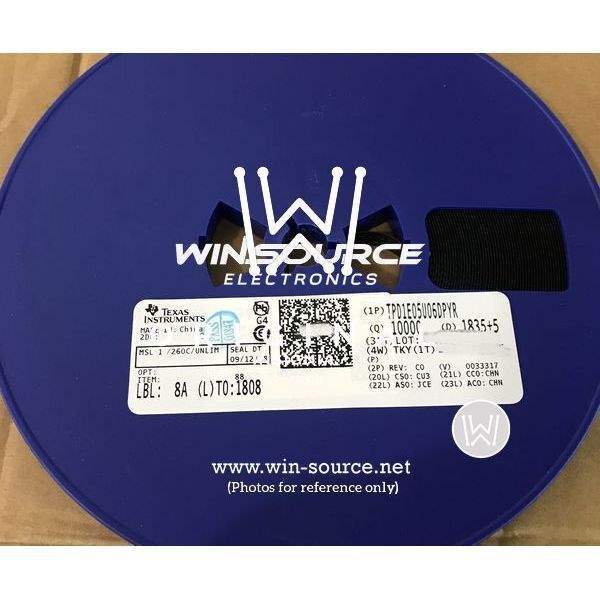

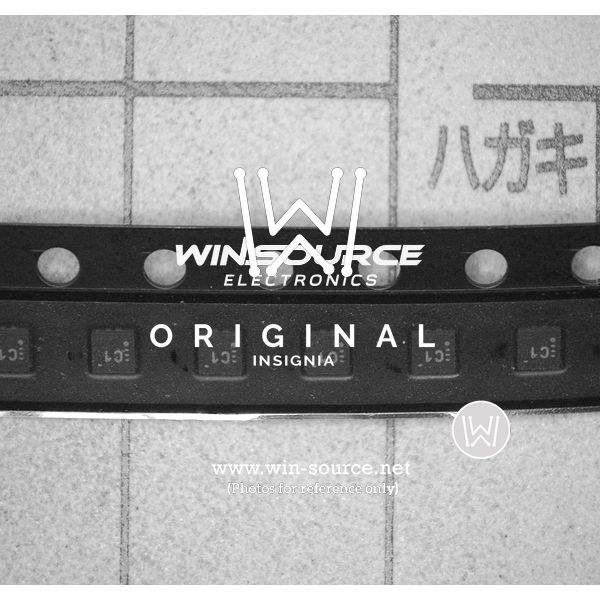

The TPD1E05U06DPYR is available in tape and reel packaging, facilitating easy integration into automated manufacturing processes. For detailed information on purchasing and pricing, please contact Texas Instruments or an authorized distributor.
