The TPD2F702YFKR is a state-of-the-art ESD (Electrostatic Discharge) protection device manufactured by Texas Instruments, designed to safeguard sensitive electronics from the potentially damaging effects of electrostatic discharge events. This compact, high-performance component is an essential addition to any system where signal integrity and component longevity are of paramount importance.

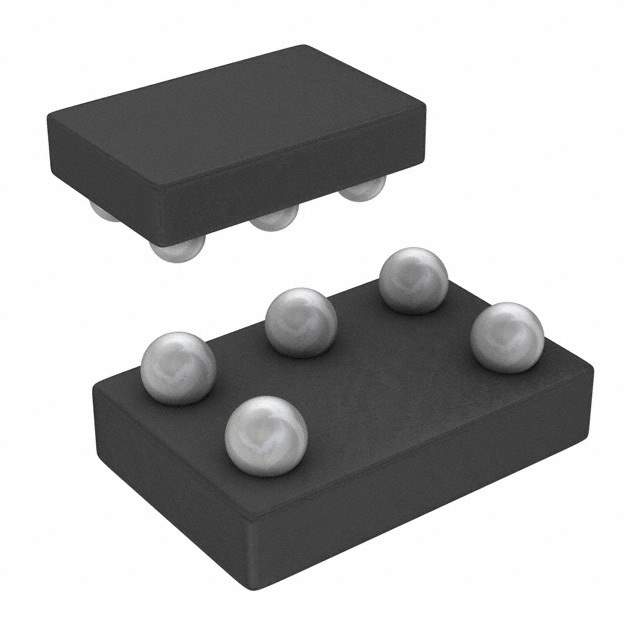

The device features a dual-channel ESD solution, providing protection for two I/O lines, and is housed in a space-saving DSBGA (Die-Size Ball Grid Array) package. This makes it an ideal choice for applications where PCB real estate is at a premium, such as portable electronics, smartphones, and other compact devices. With its low capacitance design, the TPD2F702YFKR ensures minimal signal degradation, which is crucial for maintaining high-speed data integrity.

The TPD2F702YFKR boasts an impressive ESD protection level of ±8 kV (IEC 61000-4-2, Contact Discharge) and ±15 kV (IEC 61000-4-2, Air-Gap Discharge), providing robust defense against common ESD events. The device is also characterized by its low clamping voltage, which further enhances its ability to protect sensitive circuitry from high-voltage transients.

Integration of the TPD2F702YFKR into a circuit is straightforward, thanks to its simple application design. It requires minimal additional components, which simplifies the design process and accelerates time-to-market for products. Additionally, the device's low dynamic resistance ensures that it does not significantly impede the flow of current under normal operating conditions, preserving the efficiency of the protected system.

In summary, the TPD2F702YFKR from Texas Instruments is a highly reliable and efficient ESD protection solution that combines compactness with high-performance features. Its dual-channel protection, low capacitance, and low clamping voltage make it an excellent choice for designers looking to enhance the durability and reliability of their electronic systems without compromising on form factor or signal quality.
